category:
Electric Motors
country_of_origin:
MX
height:
6.81
length:
22.87
manufacturer:
Century
mpn:
RAL1034
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14
width:
6.81

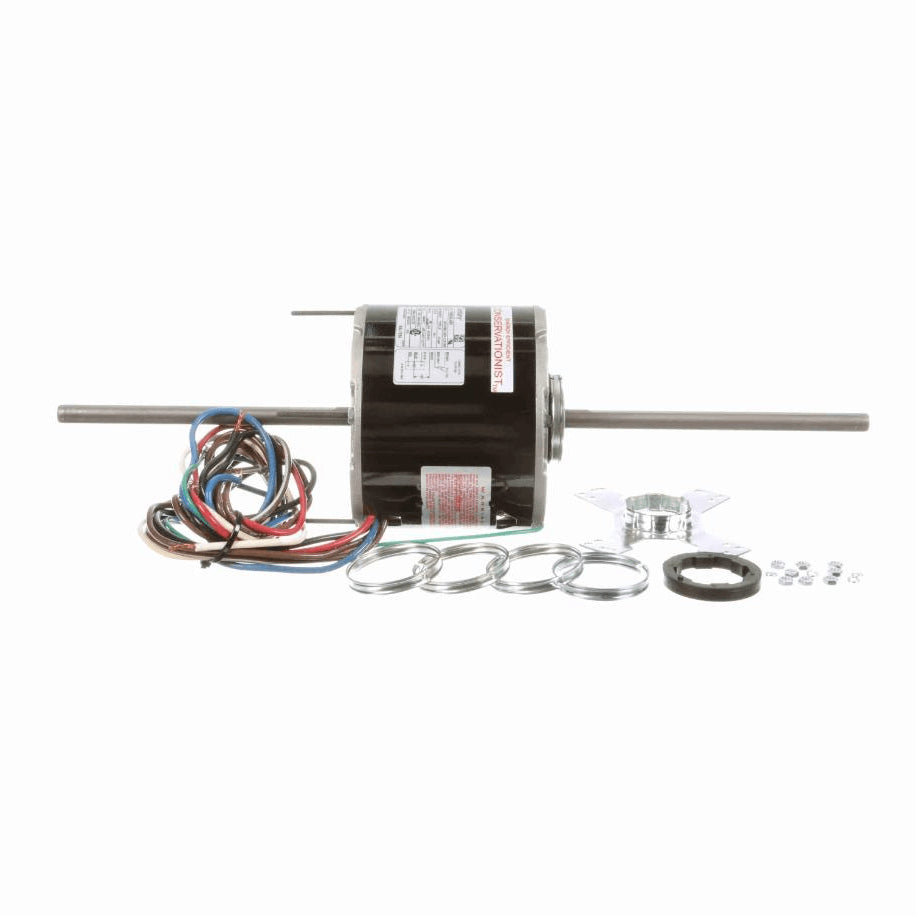

Product Overview
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class A Insulation, 40°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Double Shaft with Flat
- 35" Leads
- Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current4.0 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight14.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Lead End
MountingResilient Ring/Extended Studs
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.00 in
Shaft Diameter0.500 in
Shaft Extension7.4 X.5 X8.0 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
Efficiency65 %
