category:
Electric Motors
country_of_origin:
MX
height:
6.81
length:
22.87
manufacturer:
Century
mpn:
9687
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
15
width:
6.81

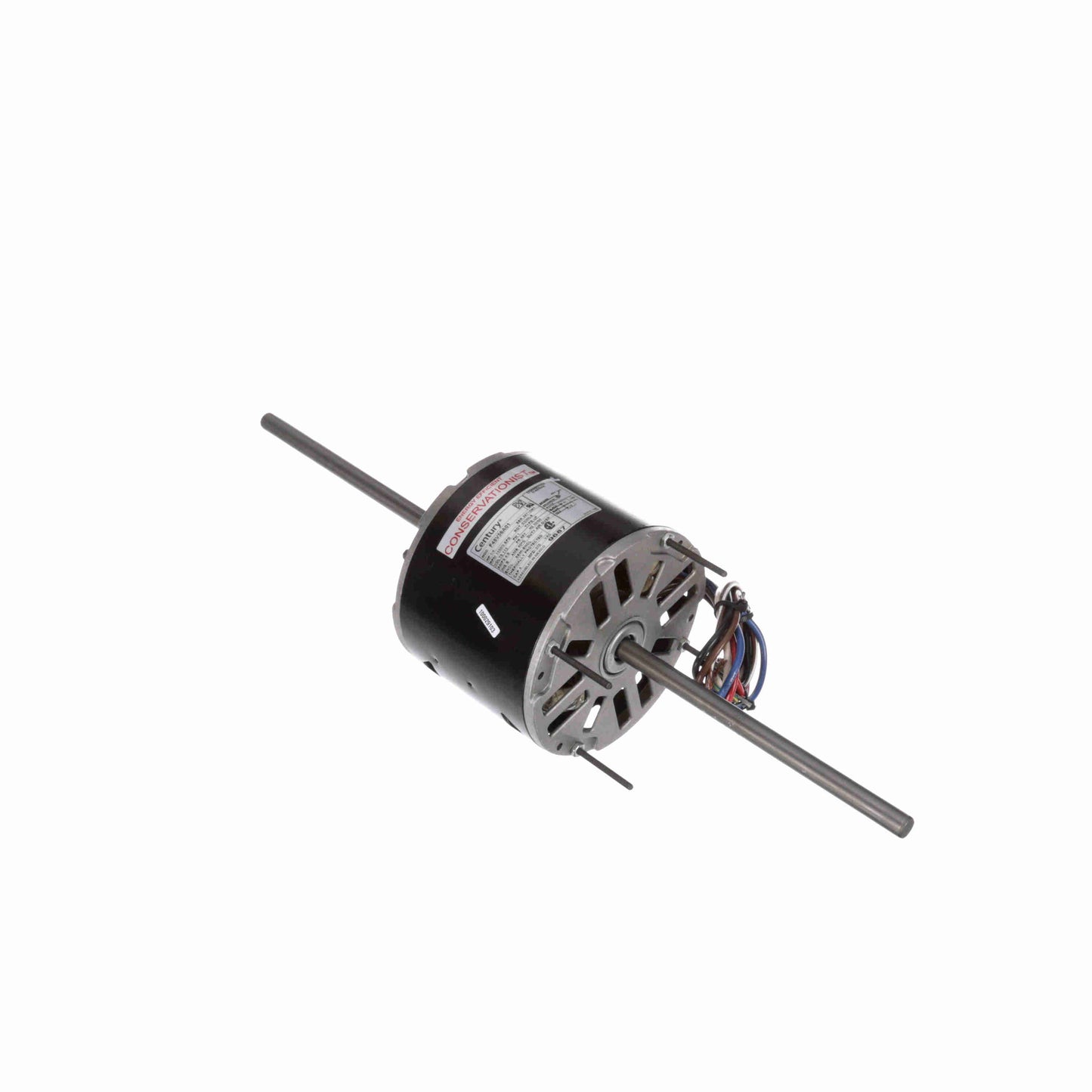

Product Overview
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 14" Leads
- Extened Studs Opposite Lead End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current4.9 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight15.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.38 in
Shaft Diameter0.500 in
Shaft Extension7.5X.5X8.0 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
