Century

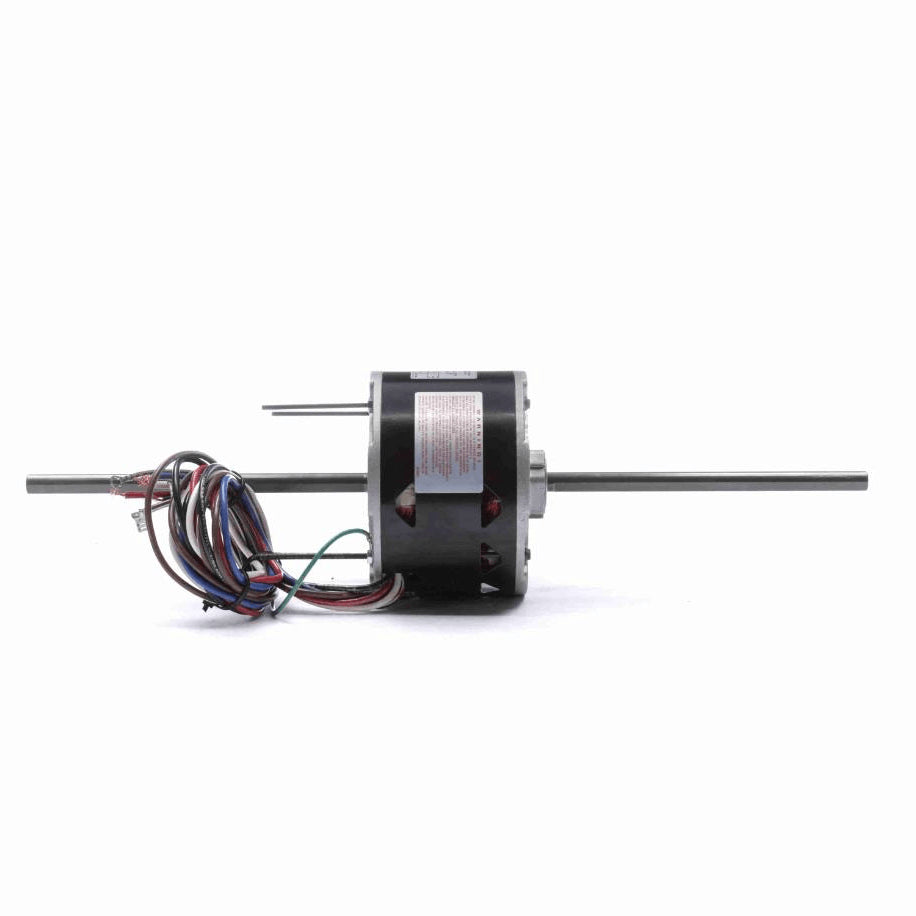

Century Fan Coil & Air Conditioner Motor, 1/6, 1/10, 1/15 HP, 1 Ph, 60 Hz, 115 V, 1625 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED - 9635A

Century Fan Coil & Air Conditioner Motor, 1/6, 1/10, 1/15 HP, 1 Ph, 60 Hz, 115 V, 1625 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED - 9635A

Dropship

SKU SKU:kpi045-9635A

Regular price $326.33 USD
Regular price Sale price $326.33 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric Motors
country_of_origin: MX
height: 6.81
length: 22.87
manufacturer: Century
mpn: 9635A
subcategory: AC Motors - NEMA
type: HVAC - R Motors
weight: 12
width: 6.81

Product Overview

  • Fan Coil - Room Air Conditioner - Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Semi-Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 37" Leads
  • Extended Studs Lead End, Resilient Ring Mounting

Additional Information

Thermal ProtectionAutomatic
Speed1625 rpm
Current1.92/1.05/0.80 A
Number of Speeds3
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/6, 1/10, 1/15 Hp
Output KW0.13 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Lead End
MountingExtended Studs
Motor OrientationVertical Shaft Up Or Down
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.86 in
Shaft Diameter0.500 in
Shaft Extension8.5 X.5X 8.4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
