category:
Electric Motors
height:
26.88
length:
4.38
manufacturer:
Century
mpn:
407
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
4.38

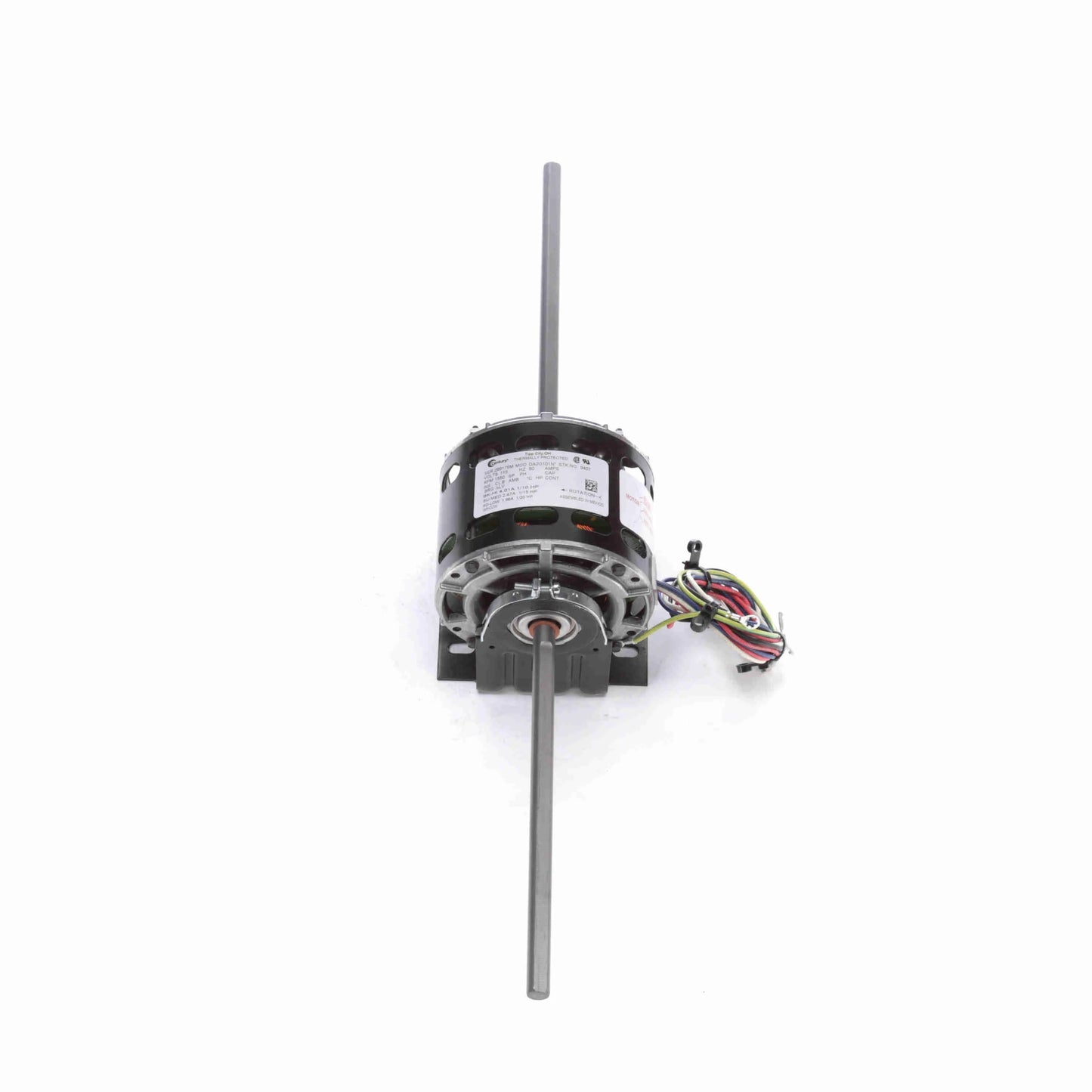

Product Overview
- Fan Coil Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 36" Leads
- Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current4.8/3.1/2.6/2.3 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/6-1/9-1/12-1/15 Hp
Output KW0.13 kW
Service Factor1
Frame4.4
EnclosureOpen Enclosed
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension7 1/2 X 1/2 X 7 1/2 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
