category:
Electric Motors
country_of_origin:
MX
height:
6.81
length:
22.87
manufacturer:
Century
mpn:
9636
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13
width:
6.81
Product Overview

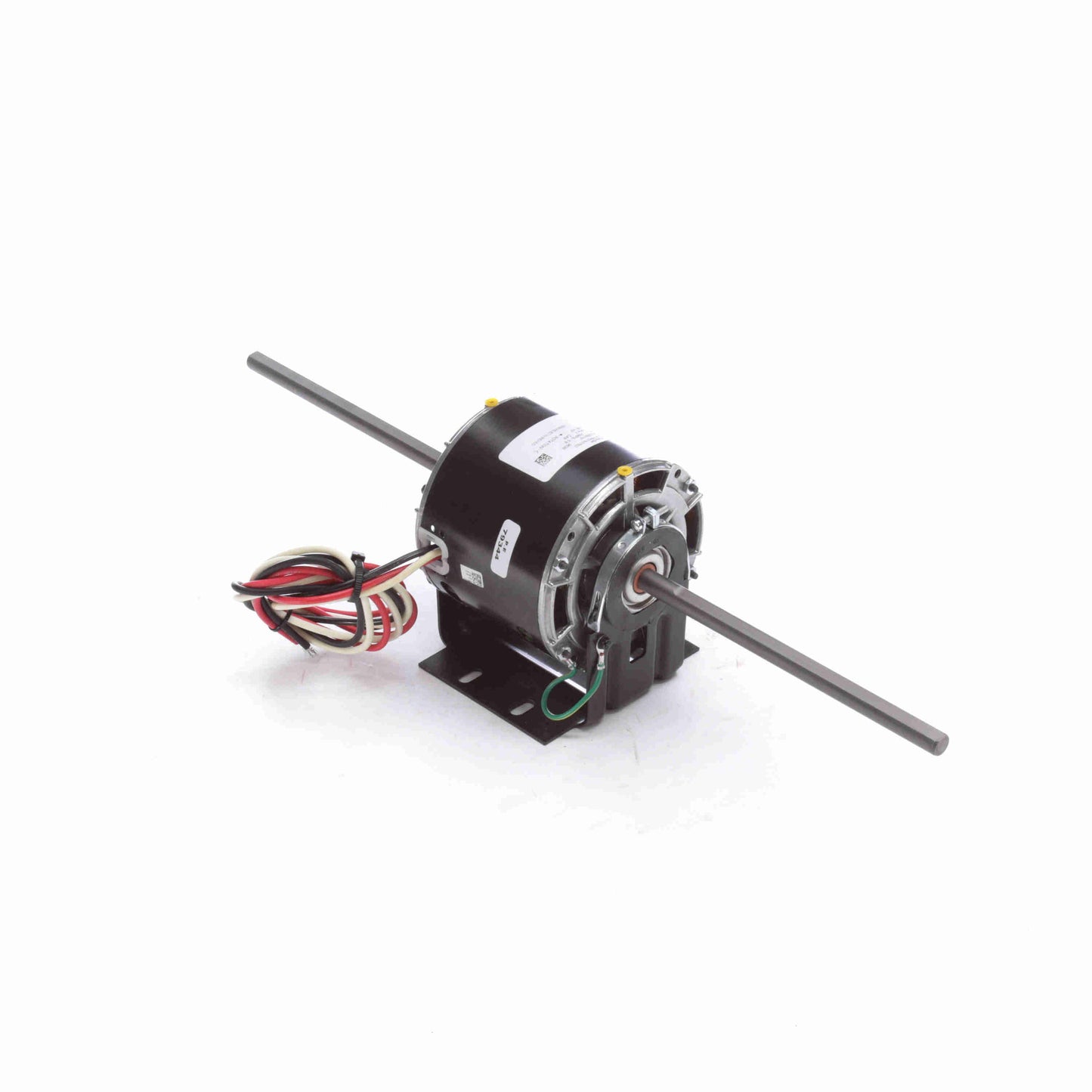

- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Semi-Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 34" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current5.8 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight13.00 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame42Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.67 in
Shaft Diameter0.500 in
Shaft Extension8.5X.5X8.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
