category:
Electric Motors
height:
6.81
length:
22.87
manufacturer:
Century
mpn:
7RA1016
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
6.81

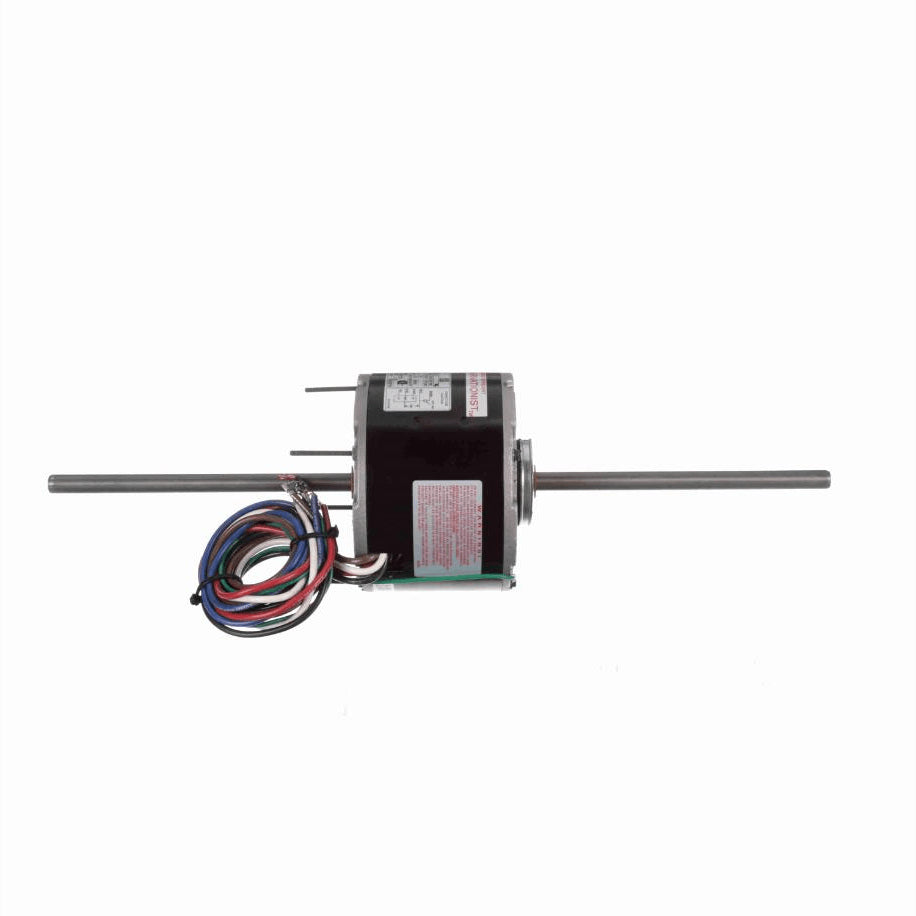

Product Overview
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 36" Leads
- Extended Studs Opposite Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current0.8 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingResilient Ring/Extended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.25 in
Shaft Diameter0.500 in
Shaft Extension8.0 X.5 X8.1 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
