category:
Electric Motors
height:
8.81
length:
25.88
manufacturer:
Century
mpn:
9408
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
8.81
Product Overview

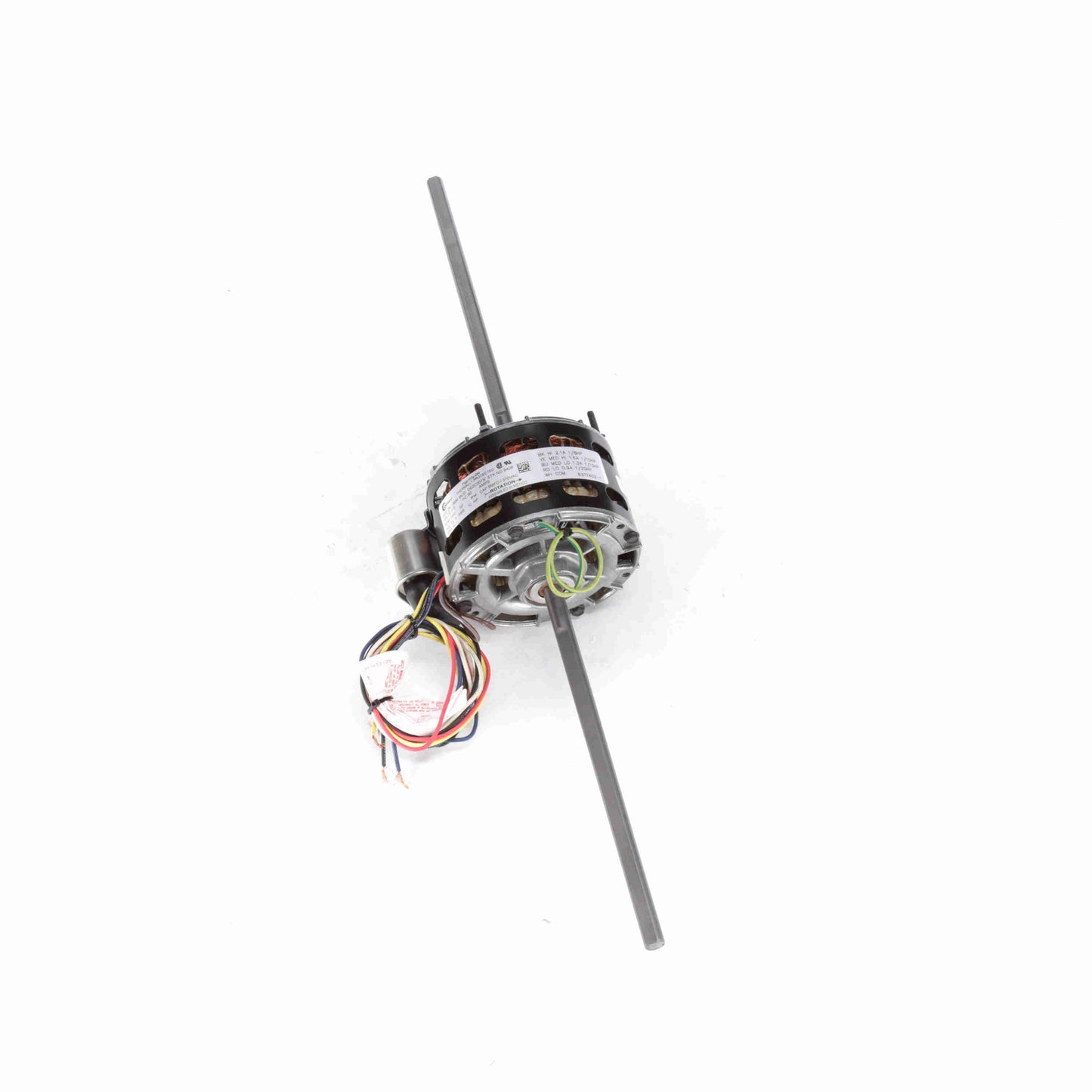

- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 31" Leads
- Extended Studs Opposite Lead End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current2.1 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/8, 1/10, 1/15, 1/20 Hp
Output KW0.10 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length2.67 in
Shaft Diameter0.500 in
Shaft Extension10.38X.5X10.38 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
