category:
Electric Motors
country_of_origin:
MX
height:
8.81
length:
25.87
manufacturer:
Century
mpn:
DBL6503
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14
width:
8.81
Product Overview

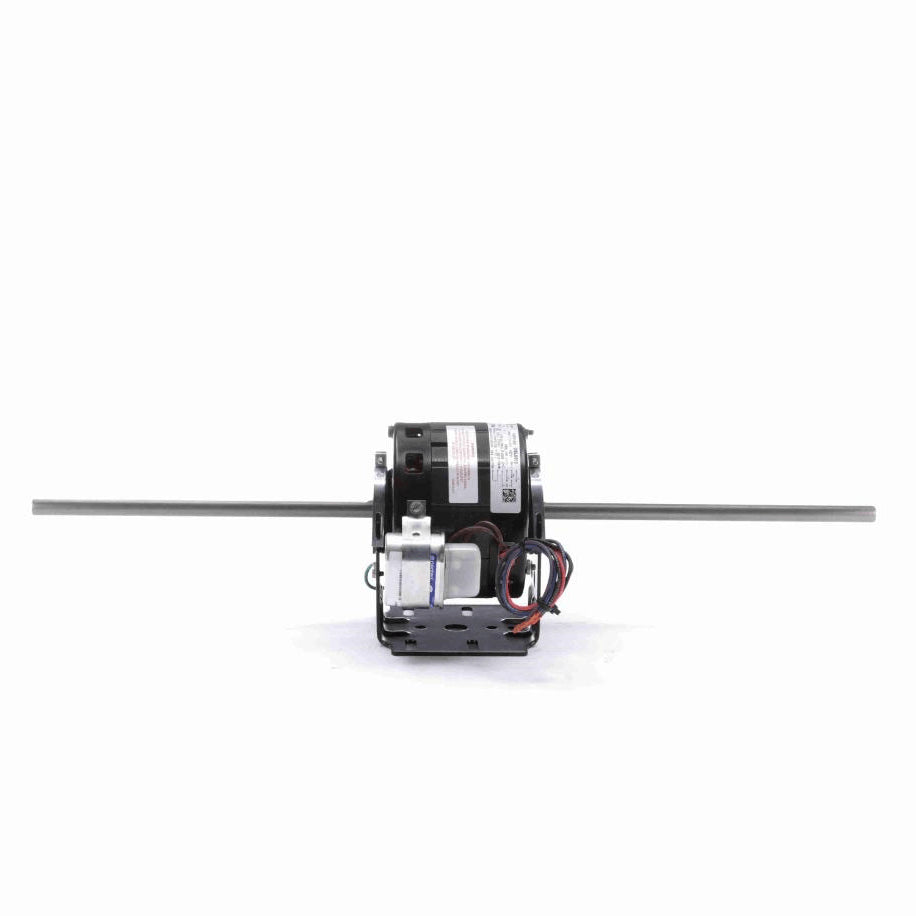

- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Double Flats
- 12" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.4 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight14.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension9.8X.5X9.8 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
