category:
Electric Motors
height:
6.81
length:
26.87
manufacturer:
Century
mpn:
DB6503
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
6.81

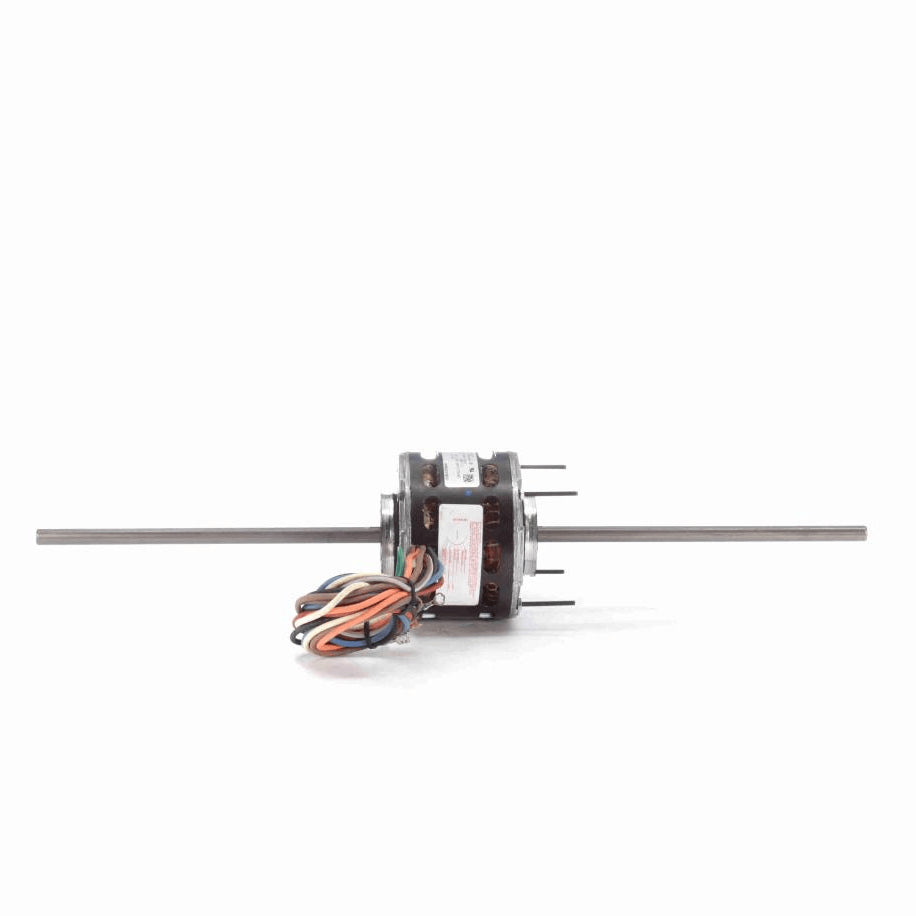

Product Overview
- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Double Flats
- 26" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.2 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length2.92 in
Shaft Diameter0.500 in
Shaft Extension10.5X.5X10.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
