category:
Electric Motors
height:
12.81
length:
12.87
manufacturer:
Century
mpn:
9422V1A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
21
width:
12.81
Product Overview

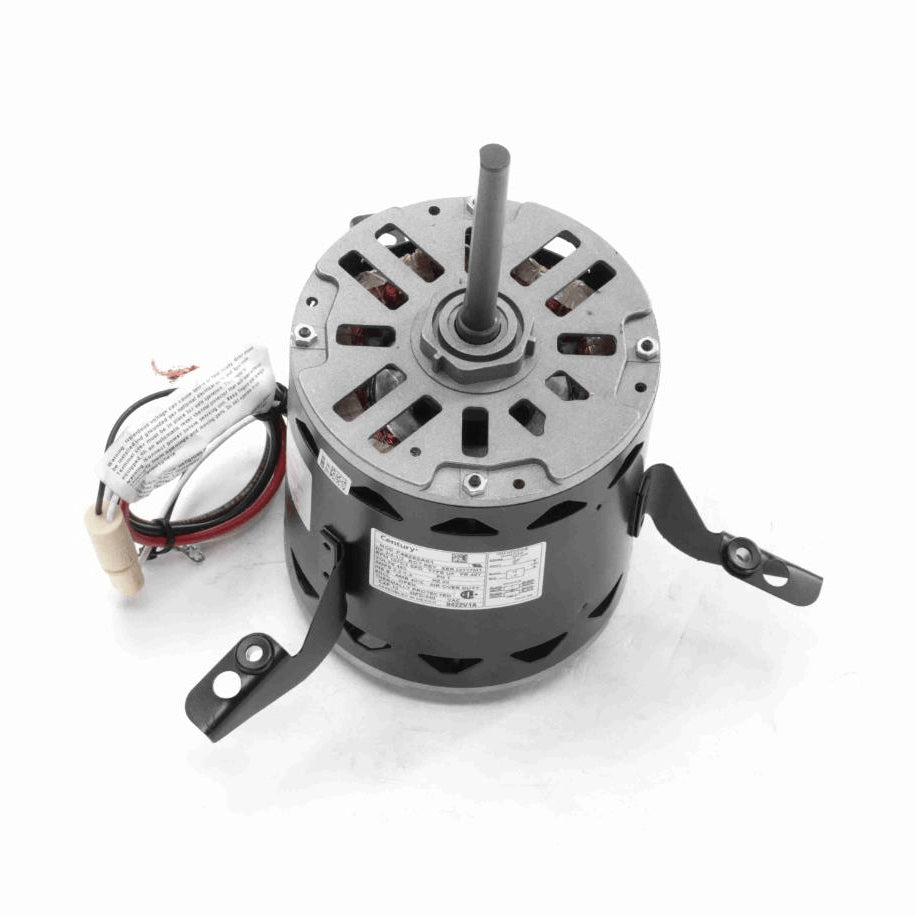

- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-440 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 12" Leads
- Flex Mount
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.2 - 1.4 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight21.00 LB
Country Of originMexico
Output HP3/4 - 1/2 Hp
Output KW0.56 kW
Service Factor1
FrameF48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingLug
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.25 in
Shaft Diameter0.500 in
Shaft Extension4.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
