category:
Electric Motors
country_of_origin:
TW
height:
15
length:
10.5
manufacturer:
Century
mpn:
FC3056F
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19
width:
9
Product Overview

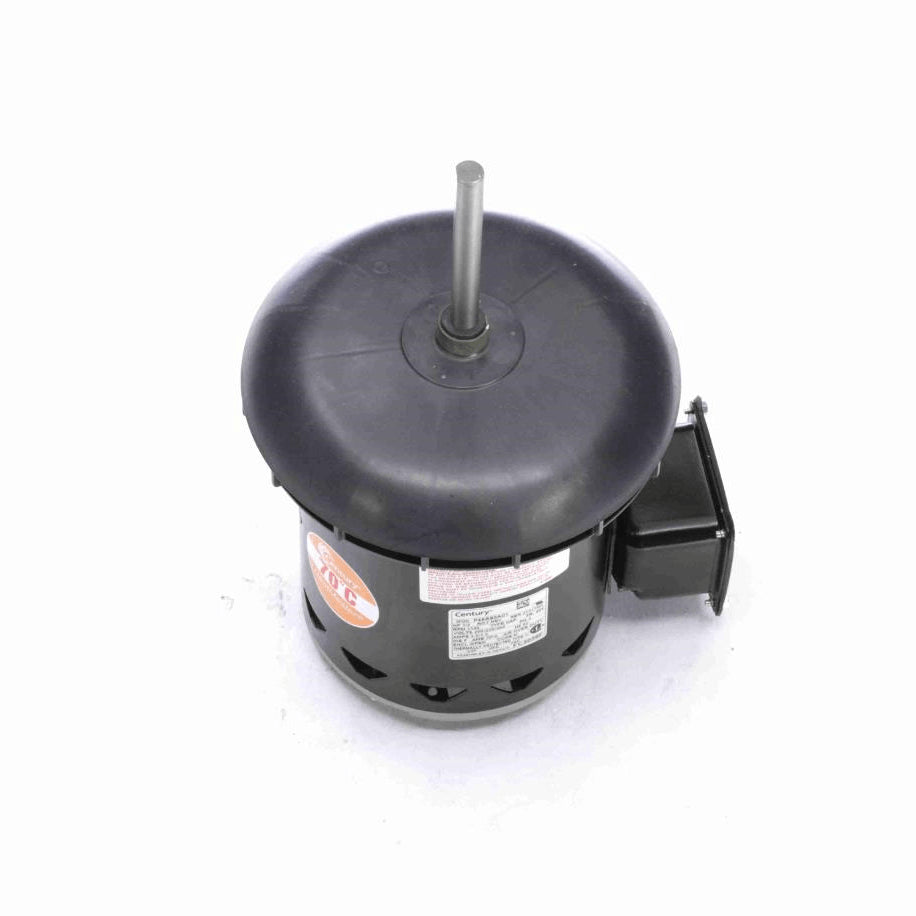

- HeatMaster - Commercial Condenser Fan Motor - Fan Canopy
- 5.6" Diameter - 48 Frame
- Polyphase
- Thermally Protected
- Open Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- Conduit Box
- Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1140 rpm
Current3.0/1.5 A
Number of Speeds1
Ambient Temperature70 °C
ULRecognized
Insulation ClassF
CSAY
Weight19.00 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48Y
EnclosureOpen Air Over
DutyAir Over
Electrical TypeThree Phase
Poles6
RotationReversible
MountingRound Belly Band
Motor OrientationVertical Shaft Up
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length6.38 in
Shaft Diameter0.500 in
Shaft Extension3.85 in
HTC8501.51.4040
CEN
Starting MethodAcross The Line
