category:
Electric Motors
country_of_origin:
TW
height:
9.52
length:
17.95
manufacturer:
Century
mpn:
FC3106F
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
32
width:
10.03
Product Overview

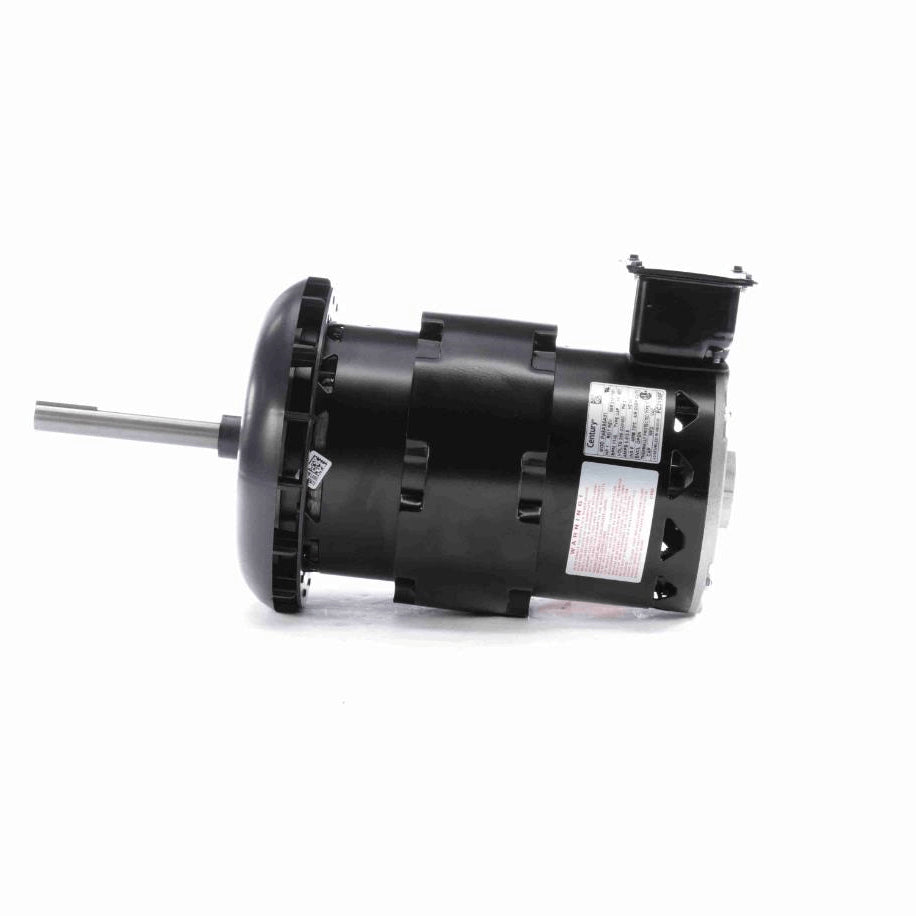

- HeatMaster - Commercial Condenser Fan Motor - Fan Canopy
- 5.6" Diameter - 48 Frame
- Polyphase
- Thermally Protected
- Open Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 5/8" Diameter Shaft with Flat and Keyway
- Conduit Box
- Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1140 rpm
Current5.6/2.8 A
Number of Speeds1
Ambient Temperature70 °C
ULRecognized
Insulation ClassF
CSAY
Weight32.00 LB
Country Of originMexico
Output HP1 Hp
Output KW0.75 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypeThree Phase
Poles6
RotationReversible
MountingRound Belly Band
Motor OrientationVertical Shaft Up
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeKeyed
Frame Length9.00 in
Shaft Diameter0.625 in
Shaft Extension4.07 in
HTC8501.51.6040
CEN
Starting MethodAcross The Line
