category:
Electric Motors
country_of_origin:
TW
height:
15
length:
10.5
manufacturer:
Century
mpn:
FC1046F
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
15
width:
9
Product Overview

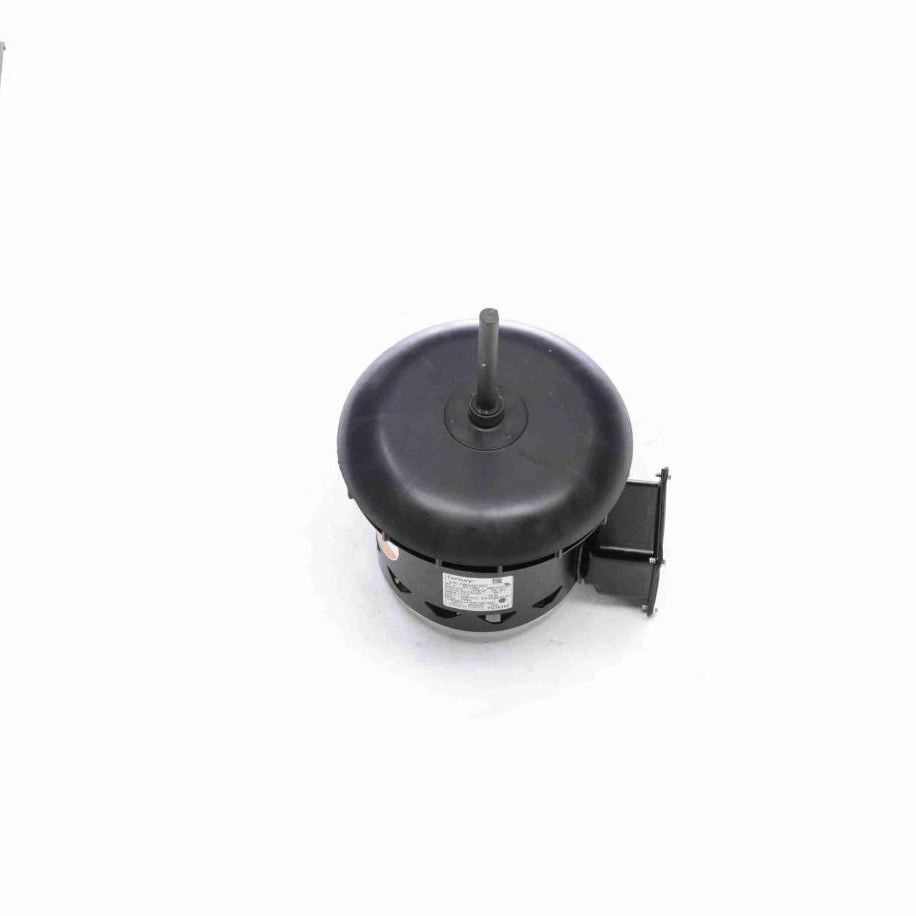

- HeatMaster - Commercial Condenser Fan Motor - Fan Canopy
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-440 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat, Supplied with 5/8" adapter and Key
- Conduit Box
- Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current3.2/1.6 A
Number of Speeds1
Ambient Temperature70 °C
ULRecognized
Insulation ClassF
CSAY
Weight15.00 LB
Country Of originMexico
Output HP.4 Hp
Output KW0.30 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingRound Belly Band
Motor OrientationVertical Shaft Up
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.75 in
Shaft Diameter0.500 in
Shaft Extension3.6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
