Century

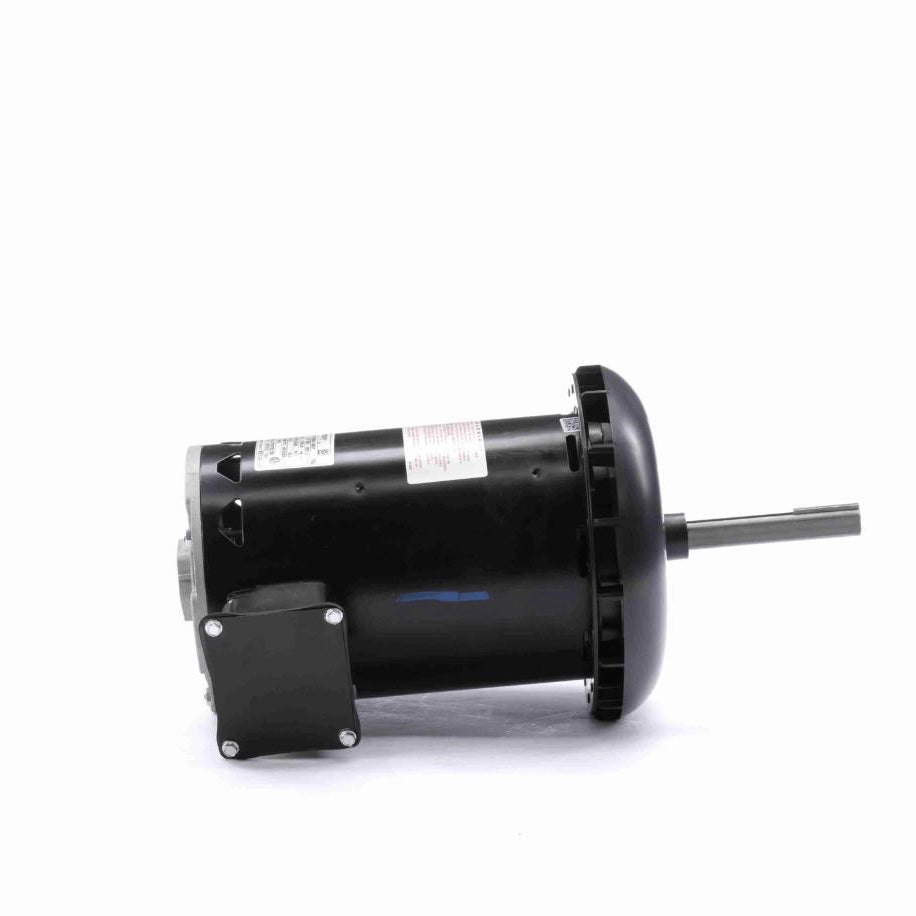

Century HEATMASTER® Condenser Fan Motor, .8 HP, 1 Ph, 60 Hz, 200-230/460 V, 1075 RPM, 1 Speed, 48 Frame, OPEN - FC1086AF

Century HEATMASTER® Condenser Fan Motor, .8 HP, 1 Ph, 60 Hz, 200-230/460 V, 1075 RPM, 1 Speed, 48 Frame, OPEN - FC1086AF

Dropship

SKU SKU:kpi045-FC1086AF

Regular price $504.72 USD
Regular price Sale price $504.72 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric Motors
country_of_origin: TW
height: 18
length: 10.5
manufacturer: Century
mpn: FC1086AF
subcategory: AC Motors - NEMA
type: HVAC - R Motors
weight: 26
width: 9

Product Overview

  • HeatMaster - Commercial Condenser Fan Motor - Fan Canopy
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 20 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 5/8" Diameter Shaft with Flat and Keyway
  • Conduit Box
  • Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic
Speed1075 rpm
Current4.6/2.3 A
Number of Speeds1
Ambient Temperature70 °C
ULRecognized
Insulation ClassF
CSAY
Weight26.00 LB
Country Of originMexico
Output HP.8 Hp
Output KW0.60 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingRound Belly Band
Motor OrientationVertical Shaft Up
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length8.25 in
Shaft Diameter0.600 in
Shaft Extension3.6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
