category:
Electric Motors
height:
6.87
length:
8.14
manufacturer:
Century
mpn:
9209H
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4
width:
6.87
Product Overview

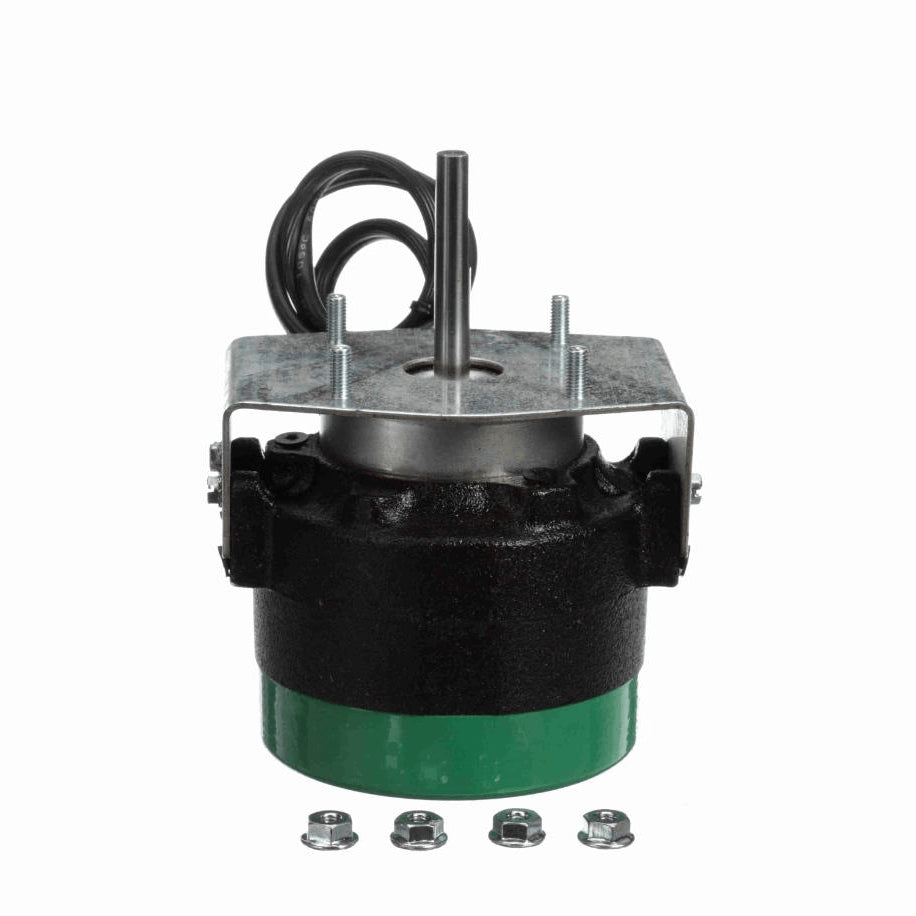

- iMotor - Refrigeration Motor
- Unit Bearing
- Electronically Commutated (ECM)
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 5/16" Diameter Shaft with Flat
- 16" Leads with Molded Plug
- Extended Studs Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current0.77 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight4.00 LB
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypeElectronically Commutated Motor
Poles4
RotationCounterclockwise Lead End
MountingExtended Studs
Drive End BearingUnit
Opp Drive End BearingUnit
Frame MaterialCast Iron
Shaft TypeFlat
Frame Length3.20 in
Shaft Diameter0.312 in
Shaft Extension1.94 in
HTC8501.10.6020
CEN
Starting MethodAcross The Line
