category:
Electric Motors
height:
6.87
length:
7.15
manufacturer:
Century
mpn:
9208F2
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3
width:
6.46
Product Overview

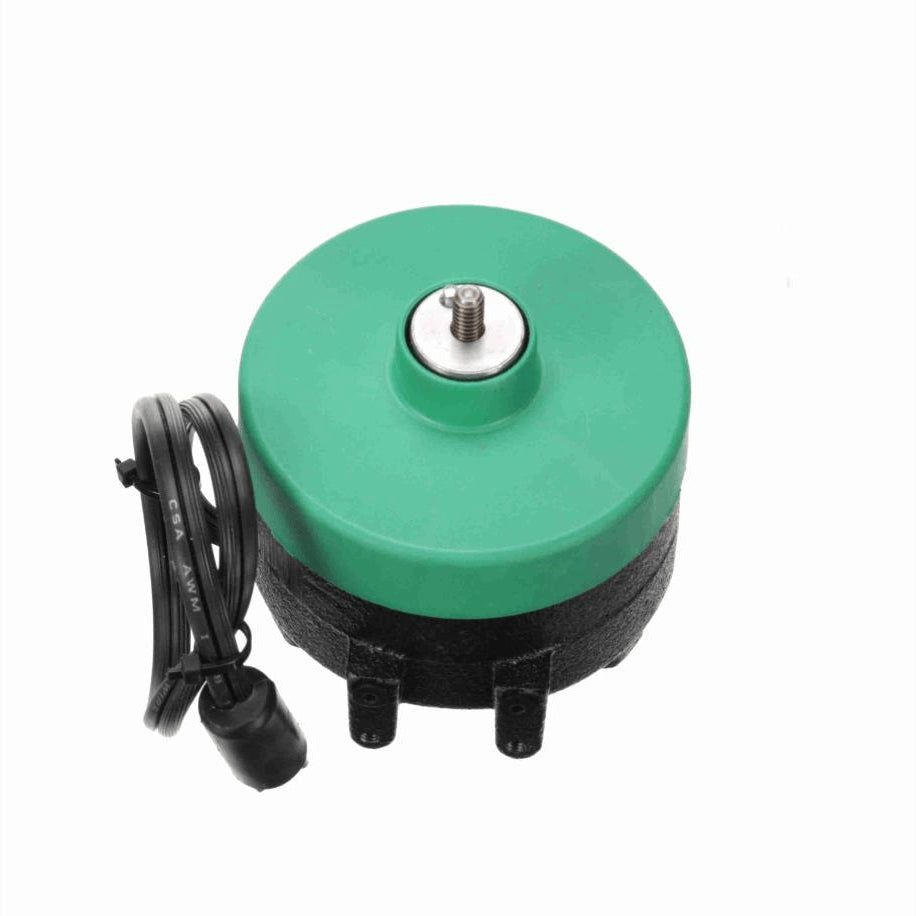

- iMotor - Refrigeration Motor
- Unit Bearing
- Electronically Commutated (ECM)
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 1/4 x 20 Threaded Shaft
- 15" Leads with Molded Plug
- Extended Studs Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current.47-.58 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight3.00 LB
Service Factor1
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypeElectronically Commutated Motor
Poles4
RotationClockwise Lead End
Mounting2 BOSS/OSE 5 HOLES
Drive End BearingUnit
Opp Drive End BearingUnit
Frame MaterialCast Iron
Shaft TypeThreaded
Frame Length3.72 in
Shaft Diameter1/4x20 in
Shaft Extension0.42 in
HTC8501.10.4020
Output Watts14, 15, 16 W
CEN
Starting MethodAcross The Line
