category:
Electric Motors
height:
6.81
length:
13.78
manufacturer:
Century
mpn:
FDL6002
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
16
width:
6.41

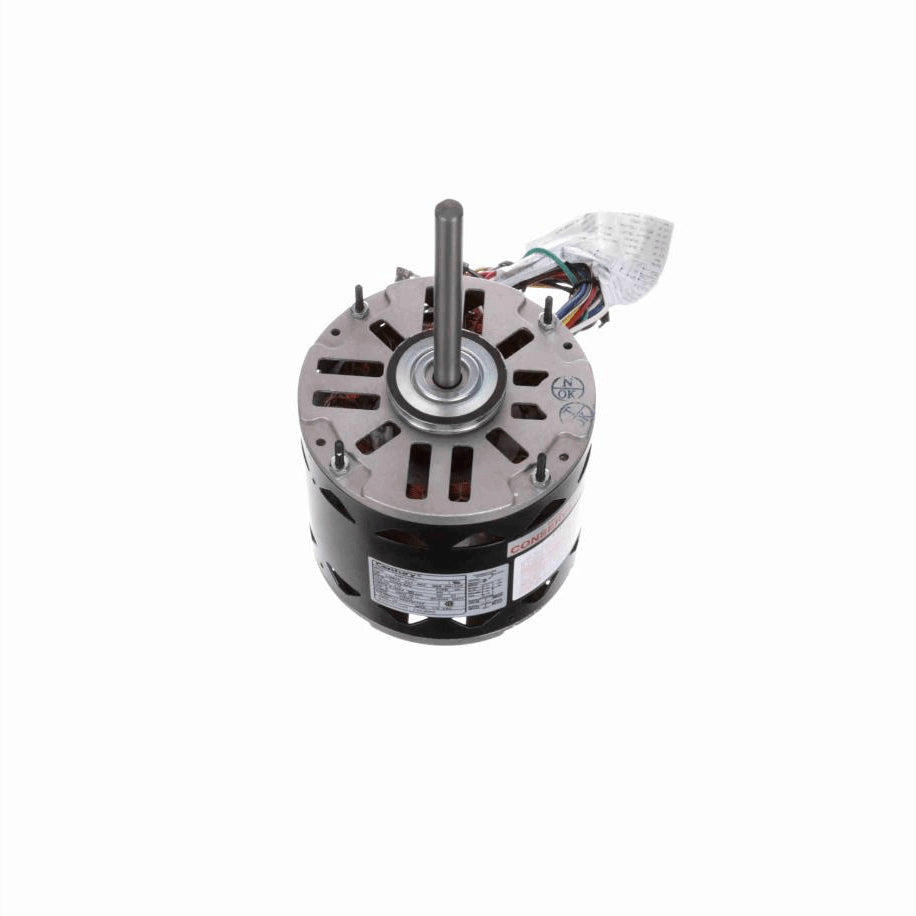

Product Overview
- MasterFit - Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads with Quick Connect Terminals
- Extended Studs Shaft End, Resilient Ring Mounting, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current9.1 MAX A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight16.00 LB
Country Of originIndia
Output HP3/4 MAX Hp
Output KW0.56 kW
Service Factor1
Frame48Y
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Ring/Extended Studs
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.86 in
Shaft Diameter0.500 in
Shaft Extension4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
Efficiency60 %
