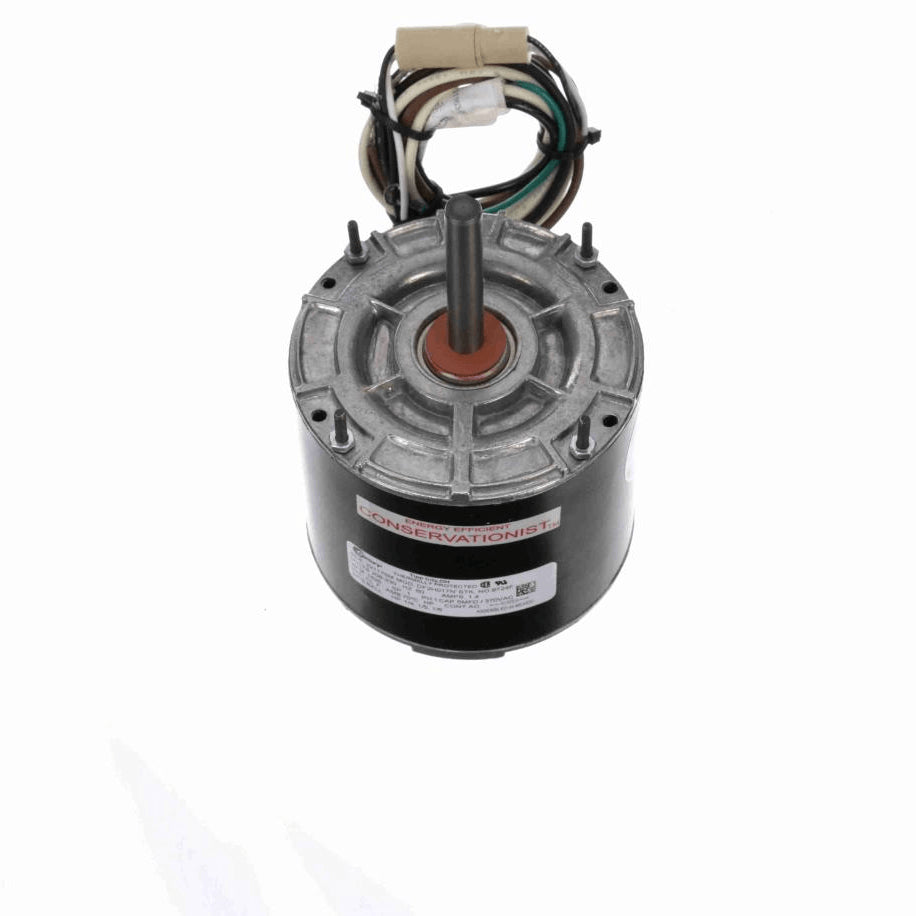

Century MULTIFIT® Condenser Fan Motor, 1/4, 1/5, 1/6 HP, 1 Ph, 60 Hz, 208-230 V, 1625 RPM, 1 Speed, 42 Frame, ENCLOSED - 9724F

Century MULTIFIT® Condenser Fan Motor, 1/4, 1/5, 1/6 HP, 1 Ph, 60 Hz, 208-230 V, 1625 RPM, 1 Speed, 42 Frame, ENCLOSED - 9724F

Back Order

Get it by Wed, May 28 - Mon, Jun 02

SKU kpi045-9724F

0
(0 rating)
$152.40 USD
$152.40 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric Motors
country_of_origin: TW
height: 5.81
length: 8.87
manufacturer: Century
mpn: 9724F
subcategory: AC Motors - NEMA
type: HVAC - R Motors
weight: 10.82
width: 5.81

Product Description

Century - 9724F

  • MultiFit - Condenser Fan Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 36" Leads
  • Extended Studs Shaft End and Lead End

Additional Information

Thermal ProtectionAutomatic
Speed1625 rpm
Current1.4 A
Number of Speeds1
Ambient Temperature70 °C
ULRecognized
Insulation ClassF
CSAY
Weight10.82 LB
Country Of originMexico
Output HP1/4, 1/5, 1/6 Hp
Output KW0.19 kW
Service Factor1
Frame42
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.17 in
Shaft Diameter0.500 in
Shaft Extension3.0 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
