category:
Electric Motors
country_of_origin:
MX
height:
5.81
length:
8.87
manufacturer:
Century
mpn:
9722
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
5.81
Product Overview

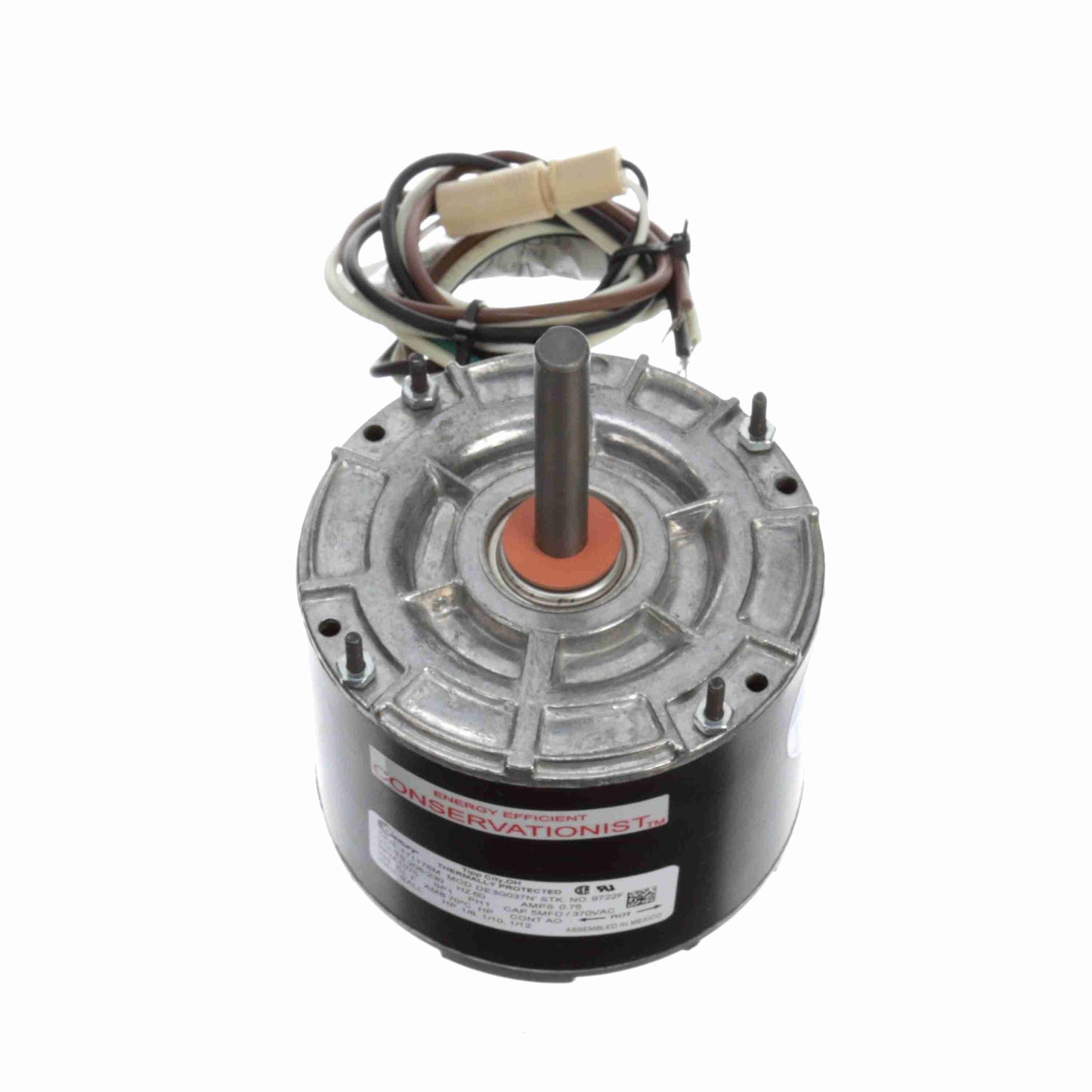

- MultiFit - Condenser Fan Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Extend Studs Shaft End and Opposite Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current0.9 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originIndia
Output HP1/8, 1/10, 1/12 Hp
Output KW0.10 kW
Service Factor1
Frame42
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.27 in
Shaft Diameter0.500 in
Shaft Extension3.0 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
