Century

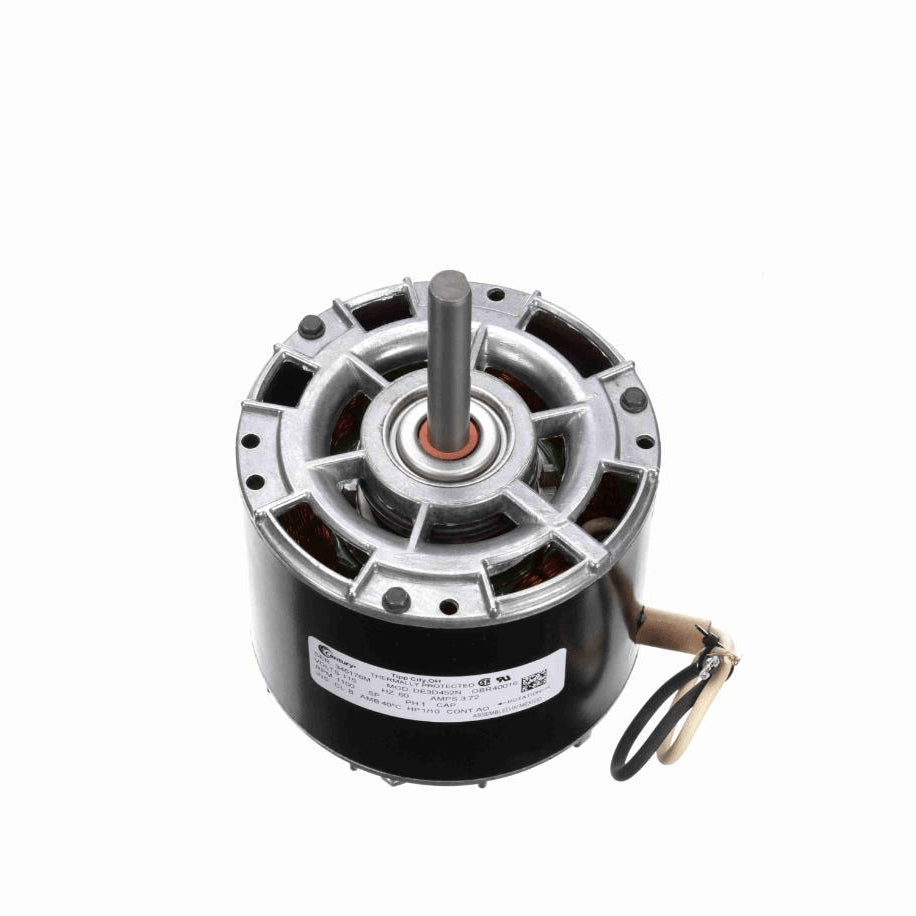

Century OEM Replacement Motor, 1/10 HP, 1 Ph, 60 Hz, 115 V, 1100 RPM, 1 Speed, 42 Frame, ENCLOSED - OBR40016

Century OEM Replacement Motor, 1/10 HP, 1 Ph, 60 Hz, 115 V, 1100 RPM, 1 Speed, 42 Frame, ENCLOSED - OBR40016

Dropship

SKU SKU:kpi045-OBR40016

Regular price $146.24 USD
Regular price Sale price $146.24 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric Motors
country_of_origin: MX
height: 6.81
length: 8.87
manufacturer: Century
mpn: OBR40016
subcategory: AC Motors - NEMA
type: HVAC - R Motors
weight: 8
width: 6.81

Product Overview

  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 8" Leads
  • Belly Band Mount (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic
Speed1100 rpm
Current3.72 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingRound Belly Band
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.42 in
Shaft Diameter0.500 in
Shaft Extension2.7 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
