category:
Electric Motors
country_of_origin:
TW
height:
7.81
length:
18.88
manufacturer:
Century
mpn:
638
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
7.81

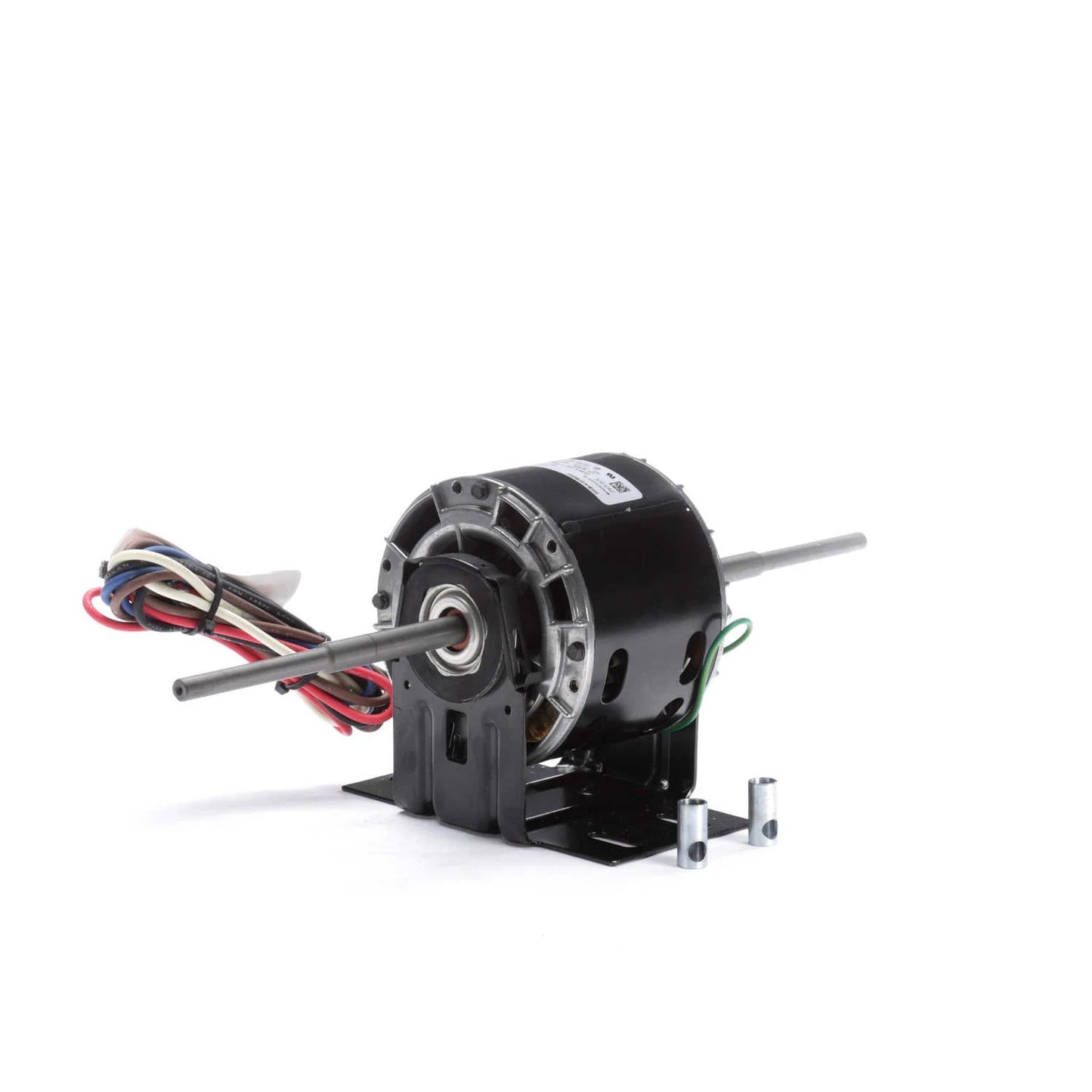

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Double Shaft with Flat
- 31" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1695 rpm
Current.87 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.17 in
Shaft Diameter0.500 in
Shaft Extension6.5X.5X6.5 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
