category:
Electric Motors
country_of_origin:
TW
height:
6.81
length:
8.87
manufacturer:
Century
mpn:
639A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
6.81

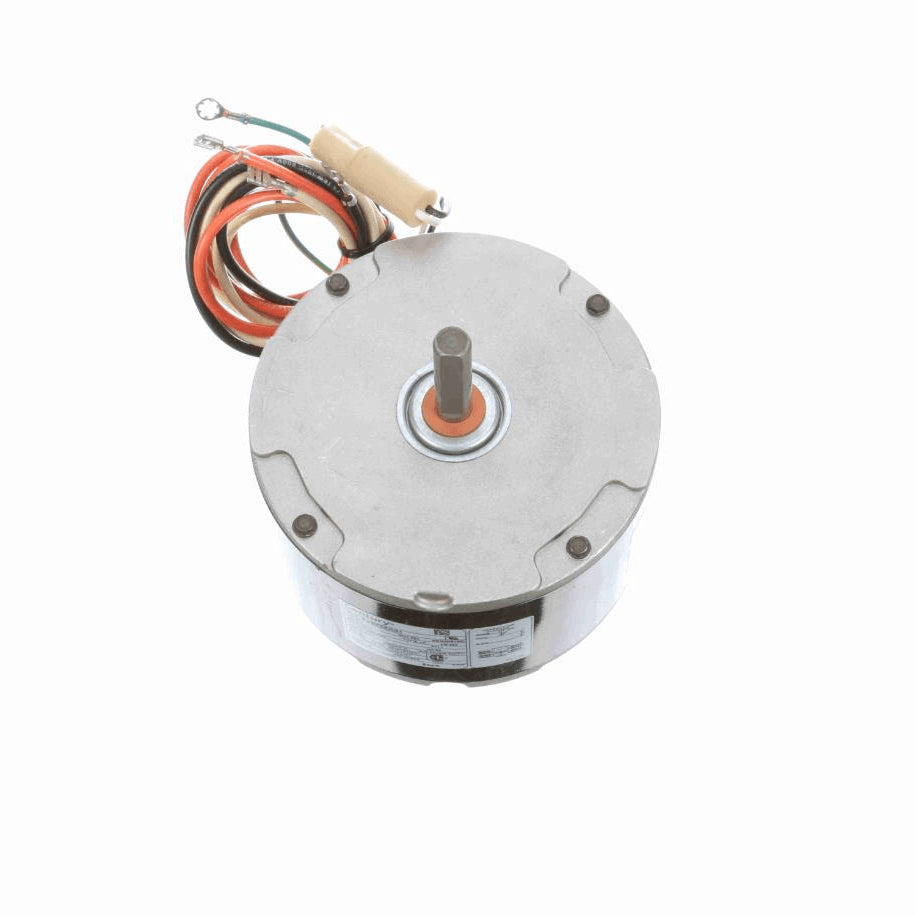

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 34" Leads with Quick Connect Terminals
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current0.8 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
FrameF48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length2.88 in
Shaft Diameter0.500 in
Shaft Extension2.02 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
