category:
Electric Motors
country_of_origin:
TW
height:
5.81
length:
8.87
manufacturer:
Century
mpn:
BL6409
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
5.81

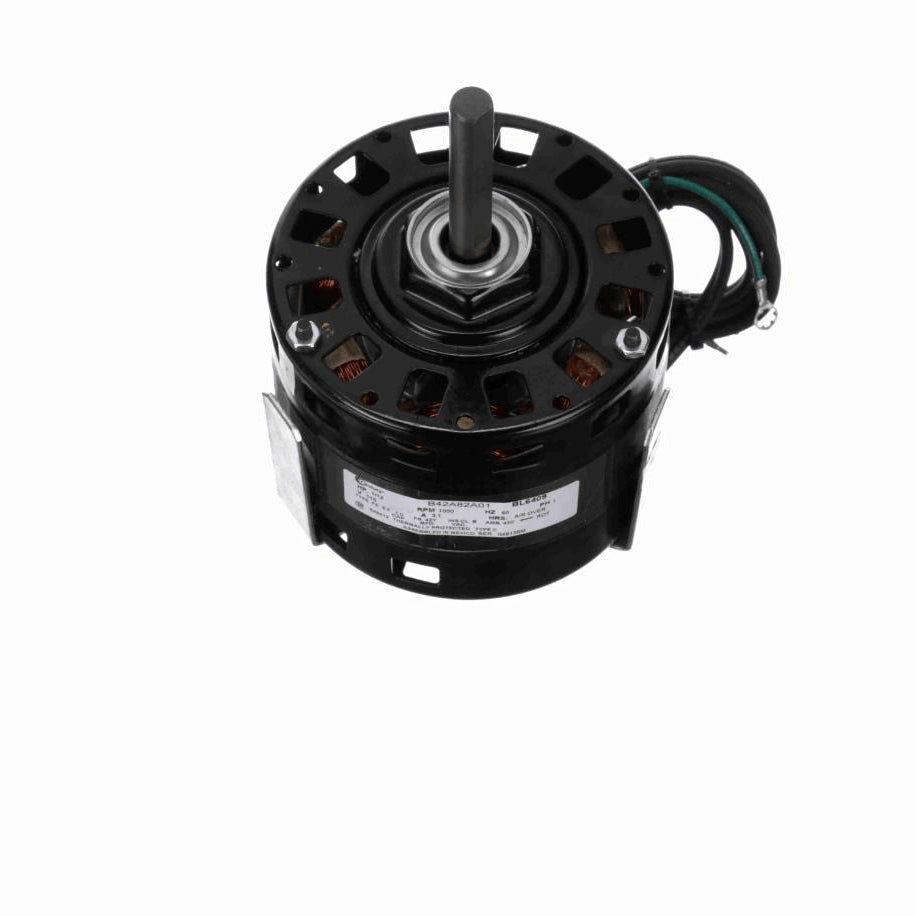

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 27" Leads with AMP Pin
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current3.1 A
Number of Speeds1
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/12 Hp
Output KW0.06 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingRound Belly Band
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialN/A
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension3 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
