category:
Electric Motors
country_of_origin:
TW
height:
5.81
length:
8.87
manufacturer:
Century
mpn:
OEV1006
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
5.81

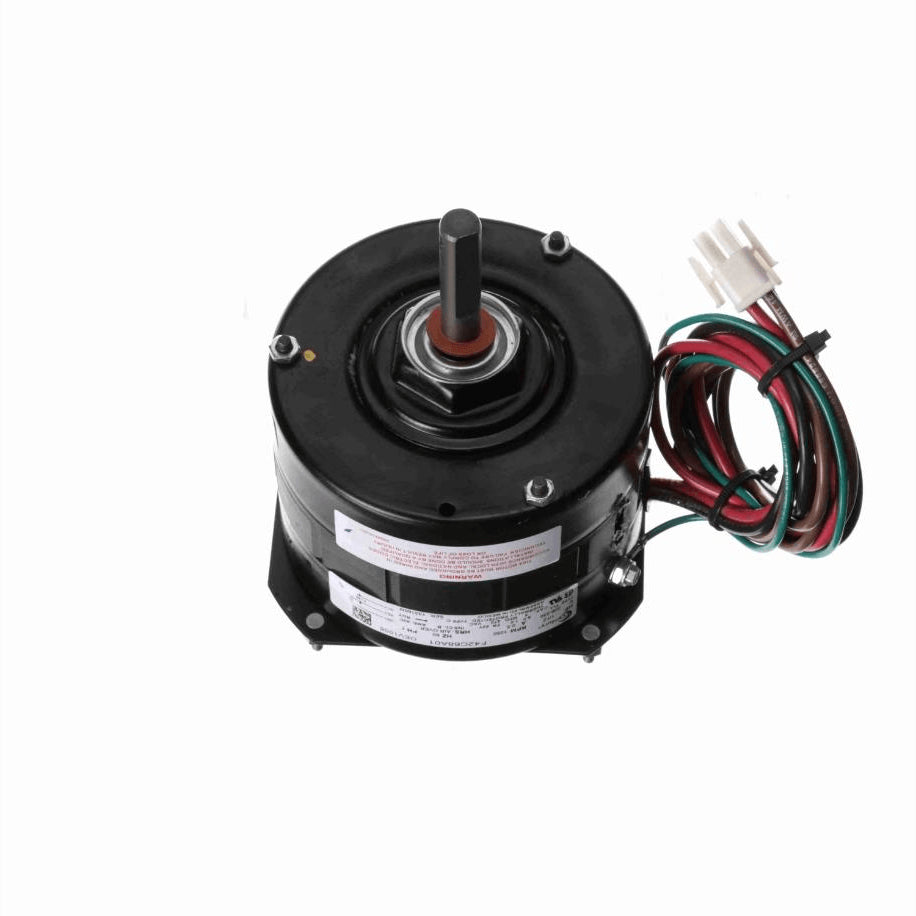

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 32" Leads with AMP Terminal Housing
- Extended Studs Lead End, Vertical Shaft Down
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current0.5 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/12 Hp
Output KW0.06 kW
Service Factor1
Frame42Y
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Lead End
MountingPlate
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension2.8 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
