Century

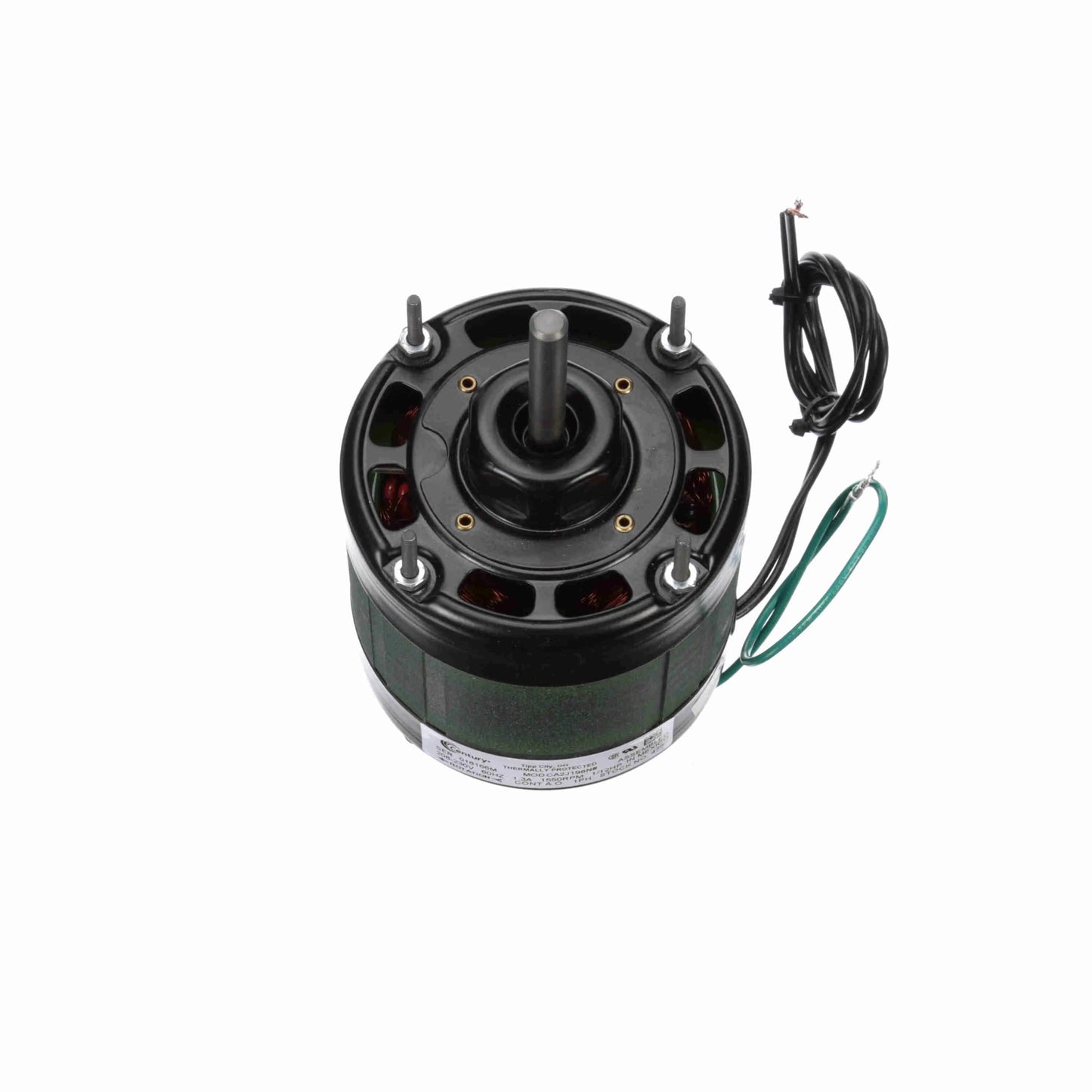

Century OEM Replacement Motor, 1/12 HP, 1 Ph, 60 Hz, 208-230 V, 1550 RPM, 1 Speed, 4.4" Diameter, OPEN - 472

Century OEM Replacement Motor, 1/12 HP, 1 Ph, 60 Hz, 208-230 V, 1550 RPM, 1 Speed, 4.4" Diameter, OPEN - 472

Dropship

SKU SKU:kpi045-472

Regular price $259.33 USD
Regular price Sale price $259.33 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric Motors
country_of_origin: TW
height: 11.5
length: 4.38
manufacturer: Century
mpn: 472
subcategory: AC Motors - NEMA
type: HVAC - R Motors
weight: 9
width: 4.38

Product Overview

  • OEM Direct Replacement Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 3/8" Diameter Shaft with Flat
  • 24" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting

Additional Information

Thermal ProtectionAutomatic
Speed1550 rpm
Current1.3 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/12 Hp
Output KW0.06 kW
Service Factor1
Frame4.4
EnclosureOpen Enclosed
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension3/8 X 2 1/2 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
