category:
Electric Motors
country_of_origin:
TW
height:
11.5
length:
4.38
manufacturer:
Century
mpn:
484
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5
width:
4.38

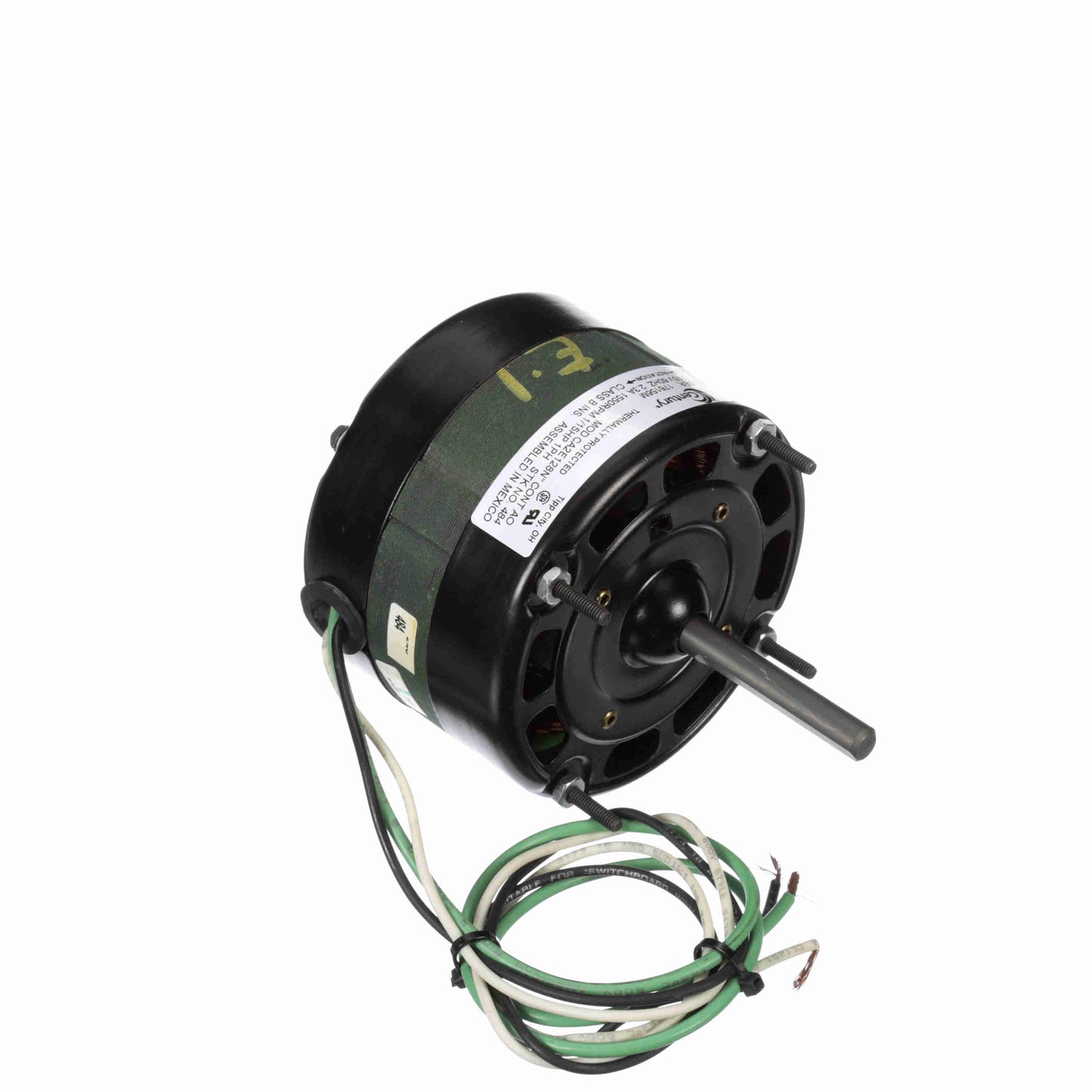

Product Overview
- OEM Direct Replacement Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Double Shaft with Flat
- 24" Leads
- Extened Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current2.3 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight5.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension2 1/2 in
HTC8501.10.6020
CEN
Starting MethodAcross The Line
