category:
Electric Motors
height:
8.5
length:
4.38
manufacturer:
Century
mpn:
9484
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6
width:
4.38

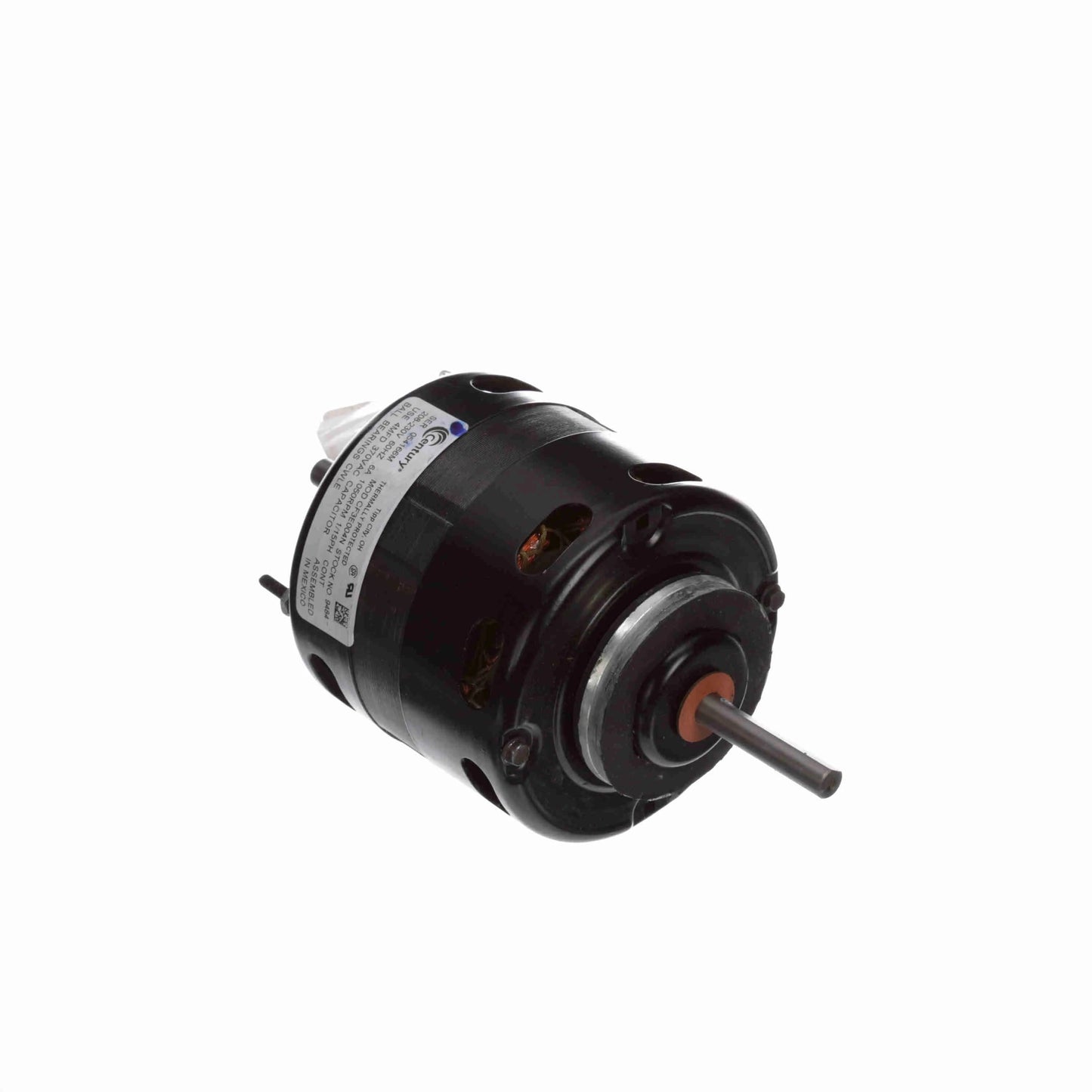

Product Overview
- OEM Direct Replacement Motor
- 4.4" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Double Shaft with Flat on Opposite Lead End
- 24" Leads
- Extended Studs on Lead End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current.60 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight6.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialN/A
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension3/8 X 2 1/2 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
