category:
Electric Motors
country_of_origin:
MX
height:
5.81
length:
8.87
manufacturer:
Century
mpn:
OTC6001
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
5.81

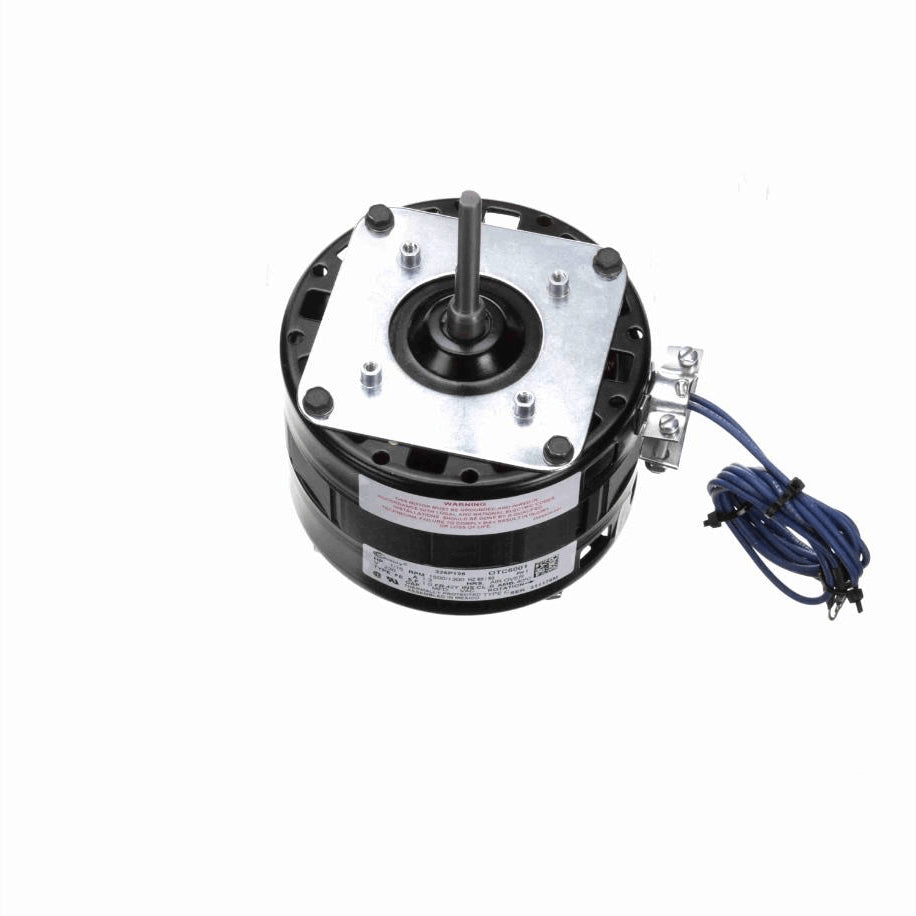

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 31" Leads with #10 Eyelet
- Four #8-32 Threaded Standoff on a 2.84 Bolt Circle Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1500/1300 rpm
Current1.3 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Lead End
MountingSpecial
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.312 in
Shaft Extension2.5 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
Efficiency26 %
