category:
Electric Motors
country_of_origin:
MX
height:
9.81
length:
12.87
manufacturer:
Century
mpn:
OHS9983
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14
width:
9.81

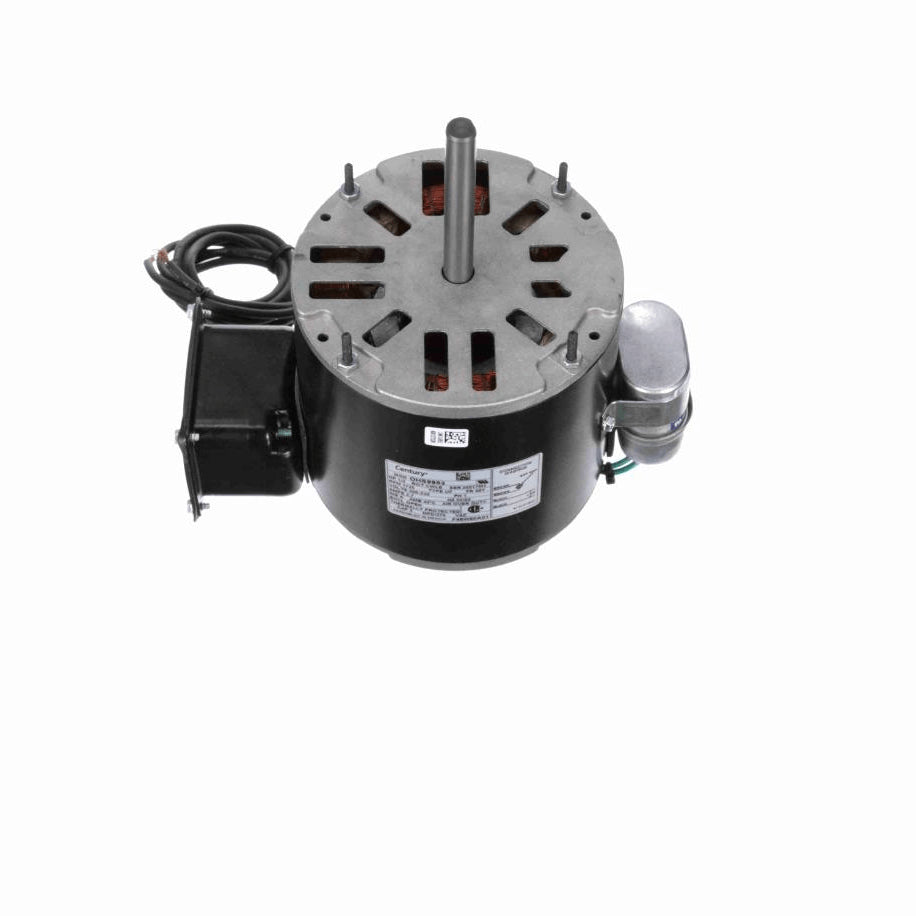

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shaft End End-Frame, Enclosed Lead End End-Frame and Shell, Air Over
- Class A Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1725 rpm
Current2.7 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight14.00 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Lead End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.63 in
Shaft Diameter0.500 in
Shaft Extension3.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
