category:
Electric Motors
country_of_origin:
TW
height:
12.81
length:
12.87
manufacturer:
Century
mpn:
969A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19
width:
12.81

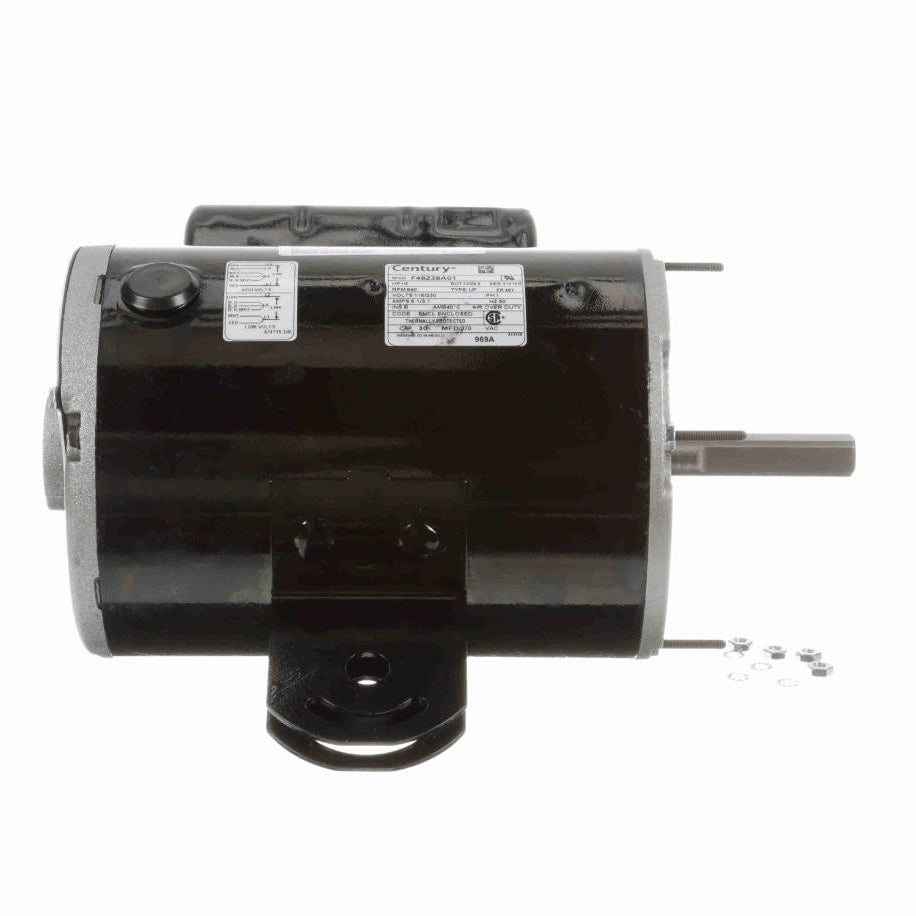

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 30 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/8" Diameter Shaft with Flat
- 6" Leads
- Yoke Mount
Additional Information
Thermal ProtectionAutomatic
Speed840 rpm
Current6.1/3.1 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight19.00 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
FrameF48Y
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationCounterclockwise Lead End
MountingYoke
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length7.00 in
Shaft Diameter0.625 in
Shaft Extension2.68 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
