category:
Electric Motors
country_of_origin:
TW
height:
7.81
length:
18.87
manufacturer:
Century
mpn:
OCC1056
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
17
width:
7.81

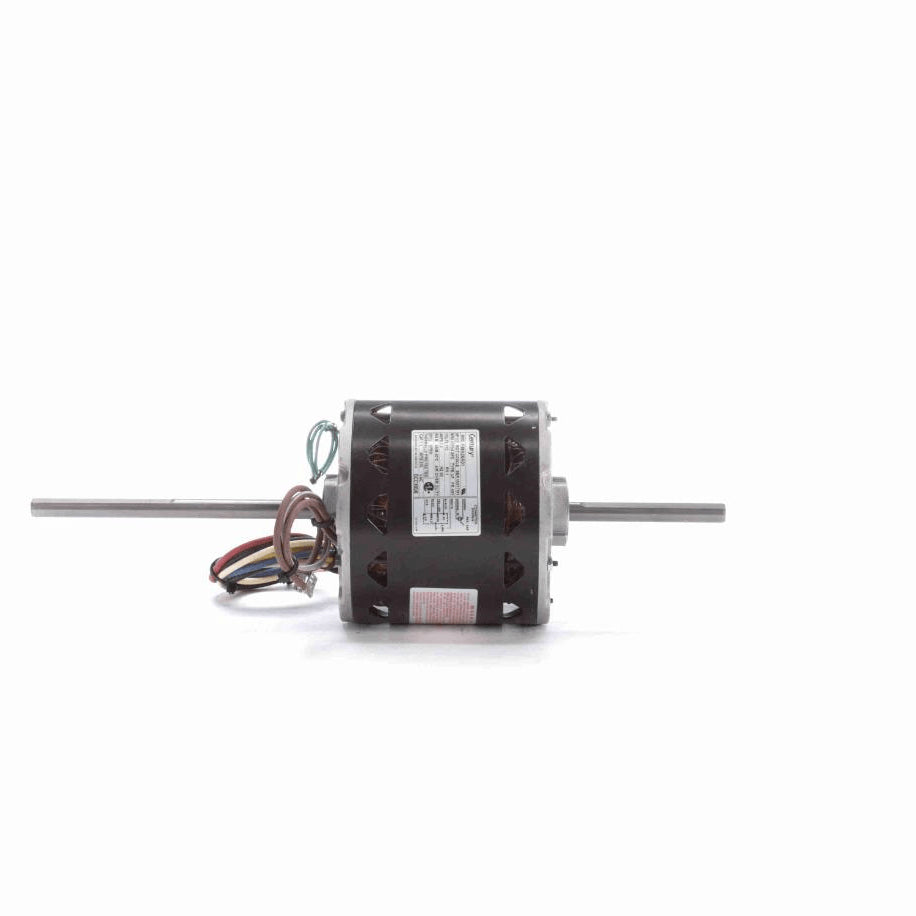

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 16" Leads
- Hex Mounting Hubs Lead End and Opposite Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current7.5 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight17.00 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingRound Belly Band
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.75 in
Shaft Diameter0.500 in
Shaft Extension7.8X.5X4.3 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
