category:
Electric Motors
country_of_origin:
TW
height:
9.1
length:
10.2
manufacturer:
Century
mpn:
OCA1056
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
21
width:
12.2

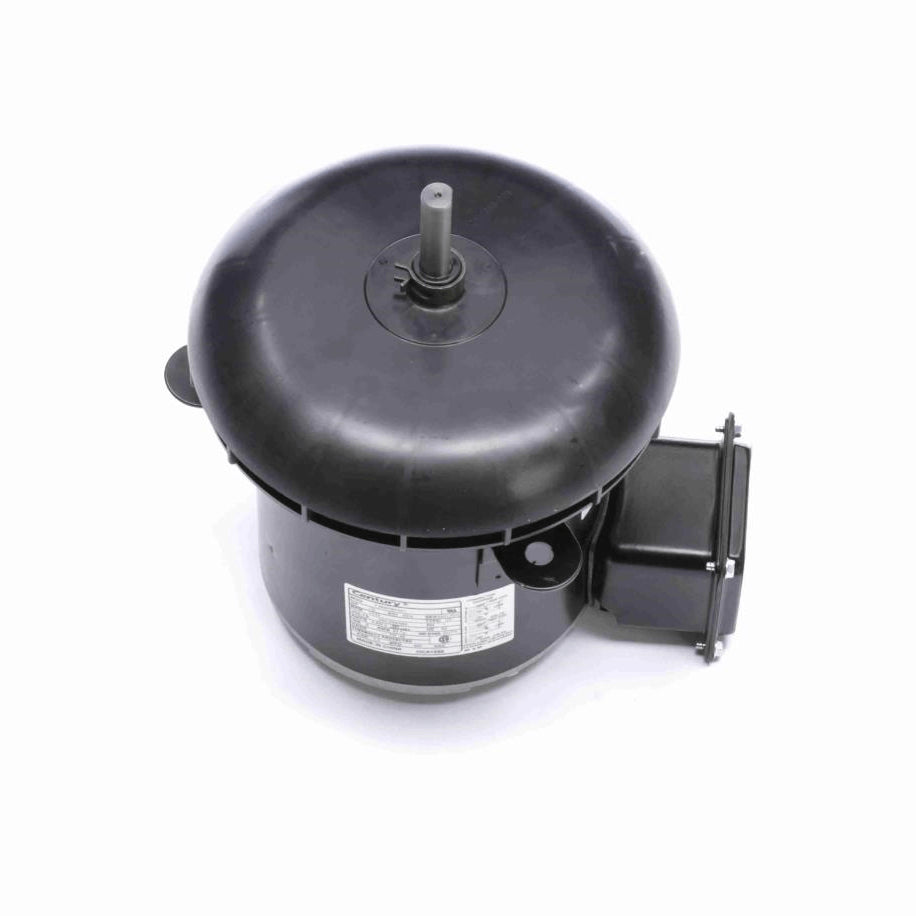

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-440 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End and Opposite Shaft End End-Frame, Semi-Enclosed Shell, Air over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- Conduit Box
- Lug Mount, Vertical Shaft Up
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current4.6/2.3 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight21.00 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingLug
Motor OrientationVertical Shaft Up
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.75 in
Shaft Diameter0.500 in
Shaft Extension1.6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
