category:
Electric Motors
height:
10
length:
13
manufacturer:
Century
mpn:
OKT3041
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
21
width:
7

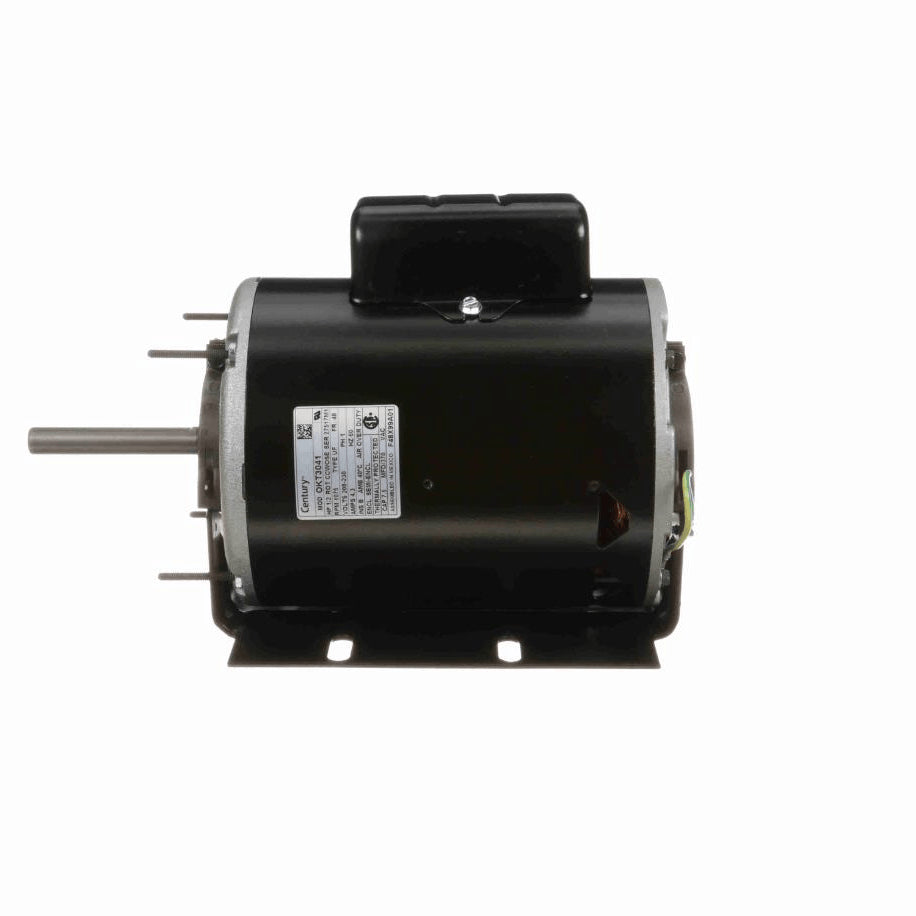

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Opposite Shaft End End-Frame, Enclosed Shaft End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 1/2" Conduit with Plug
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current4.3 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight21.00 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Opposite Shaft End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length6.63 in
Shaft Diameter0.500 in
Shaft Extension3.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
