category:
Electric Motors
country_of_origin:
TW
height:
8
length:
11.5
manufacturer:
Century
mpn:
332
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
7.5

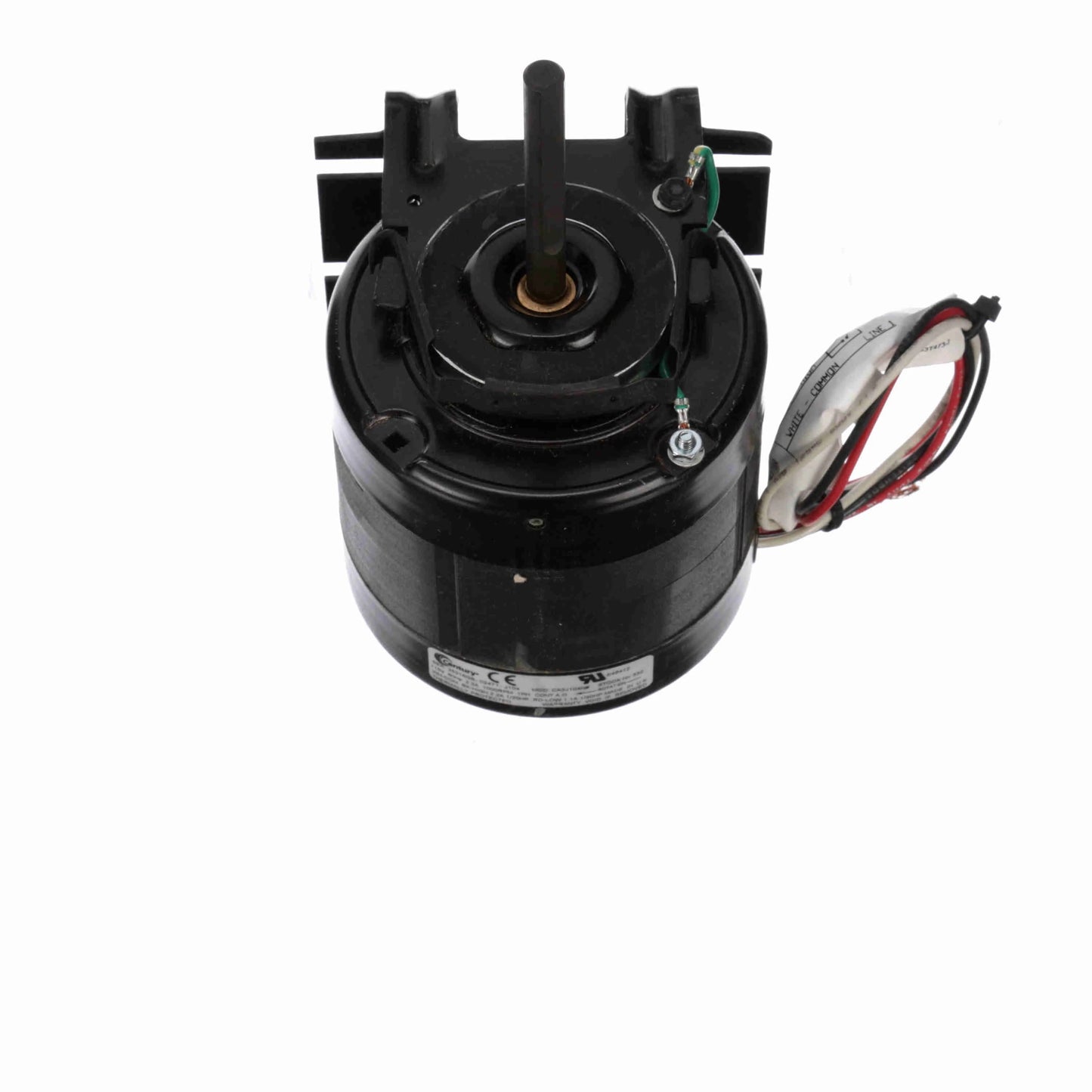

Product Overview
- OEM Direct Replacement Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Non-Ventilated
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 18" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1000 rpm
Current2.2/1.1 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAN
Weight9.00 LB
Country Of originUnited Kingdom
Output HP1/20-1/30 Hp
Output KW0.04 kW
Service Factor1
Frame4.4
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles6
RotationClockwise Shaft End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension3/8 X 2 7/8 in
HTC8501.10.6020
CEN
Starting MethodAcross The Line
