category:
Electric Motors
country_of_origin:
MX
height:
11.5
length:
4.38
manufacturer:
Century
mpn:
657
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
4.38

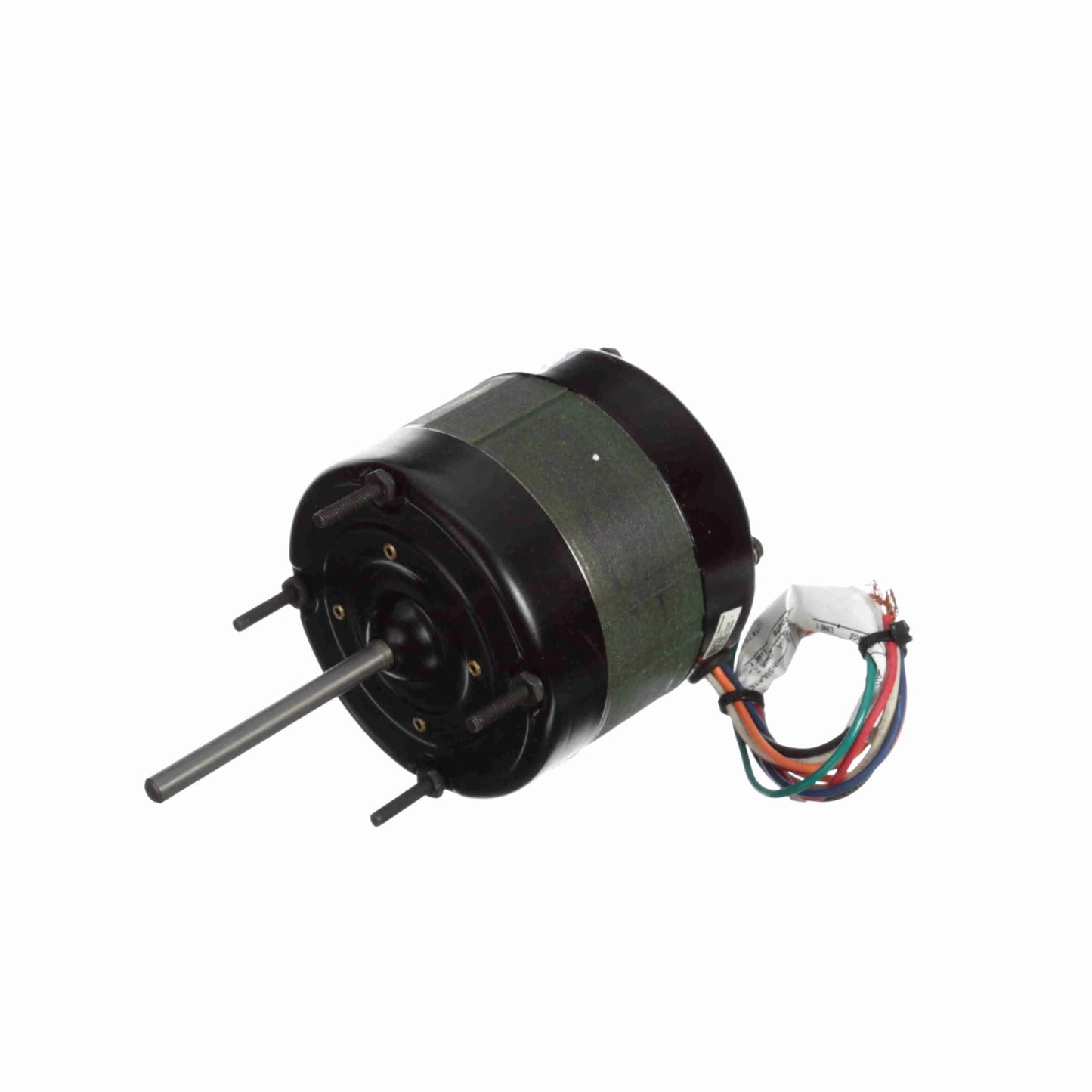

Product Overview
- OEM Direct Replacement Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current.75/.34 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/20 Hp
Output KW0.04 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Shaft Diameter0.312 in
Shaft Extension5/16 X 3 5/8 in
HTC8501.10.6020
CEN
Starting MethodAcross The Line
