category:
Electric Motors
height:
10
length:
11
manufacturer:
Century
mpn:
970A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
18
width:
11

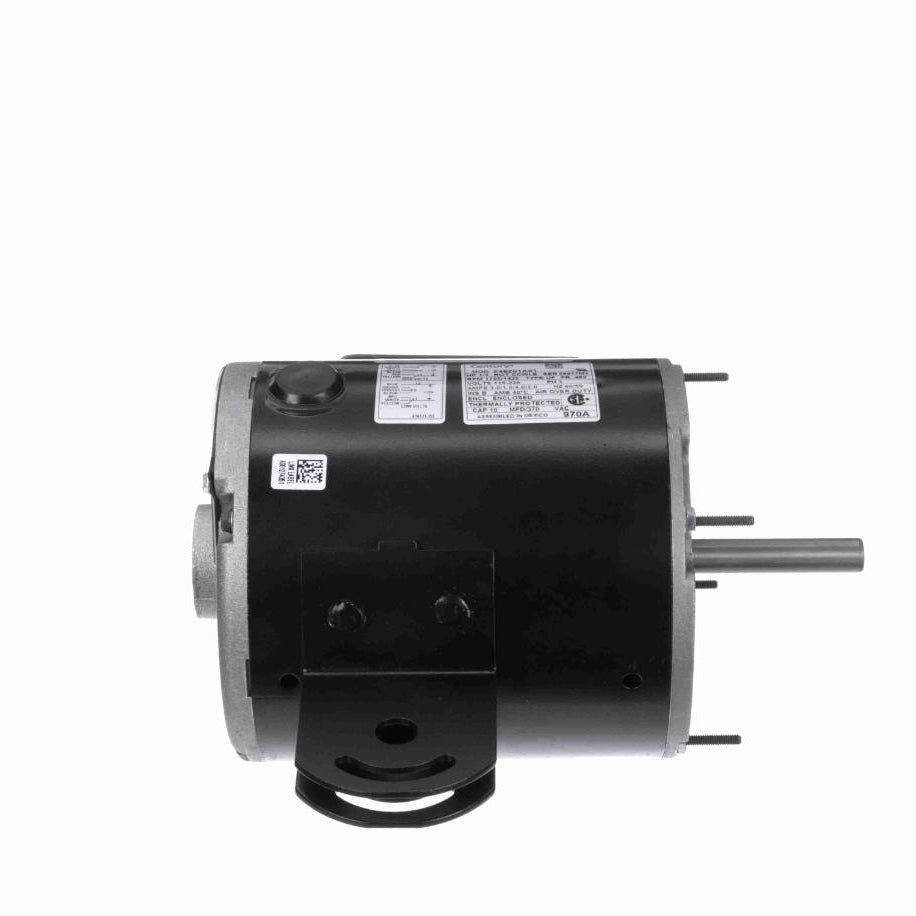

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 5.5" Leads
- Yoke Mount
Additional Information
Thermal ProtectionAutomatic
Speed1725/1425 rpm
Current3.0/1.5 / 4.0/2.0 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight18.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Lead End
MountingYoke
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length5.50 in
Shaft Diameter0.500 in
Shaft Extension2.56 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
