category:
Electric Motors
country_of_origin:
TW
height:
6.81
length:
8.87
manufacturer:
Century
mpn:
ORM1036V1
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13
width:
6.81

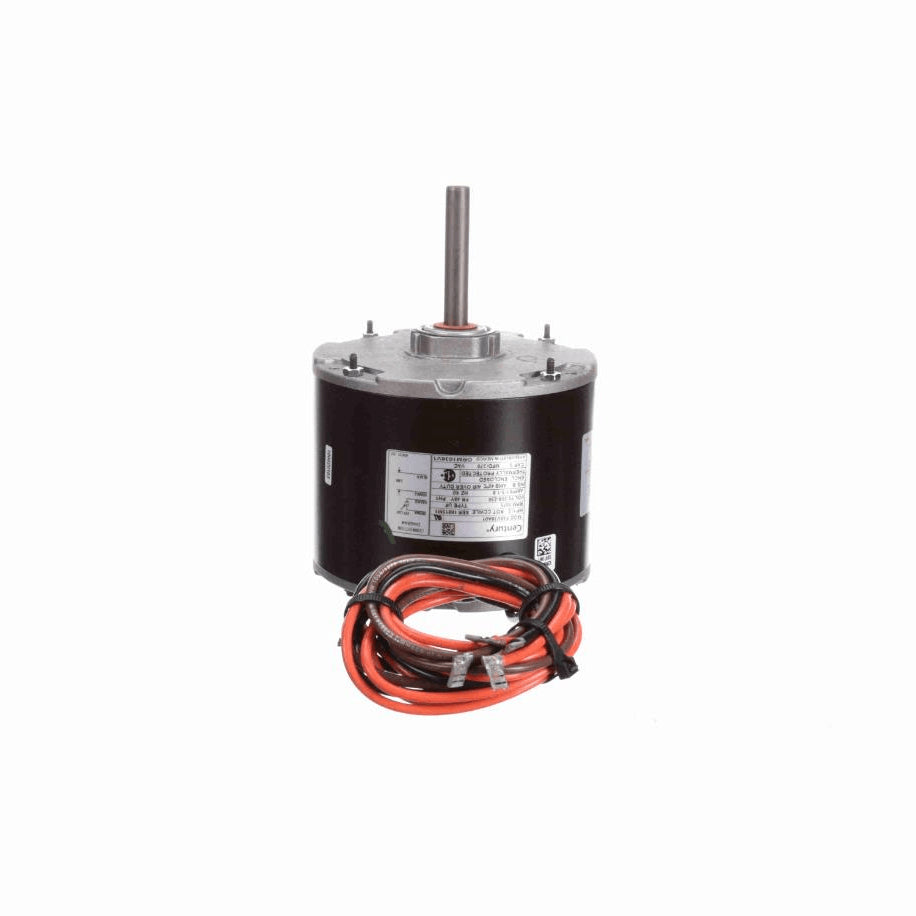

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 39" Leads with Flag Terminals
- Extended Studs Shaft End, Hex Mounting Hub Shaft End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.5-1.8 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight13.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingExtended Studs
Motor OrientationVertical Shaft Down
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length3.38 in
Shaft Diameter0.500 in
Shaft Extension3.3 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
