category:
Electric Motors
country_of_origin:
TW
height:
9
length:
11
manufacturer:
Century
mpn:
OCB1036A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13
width:
8

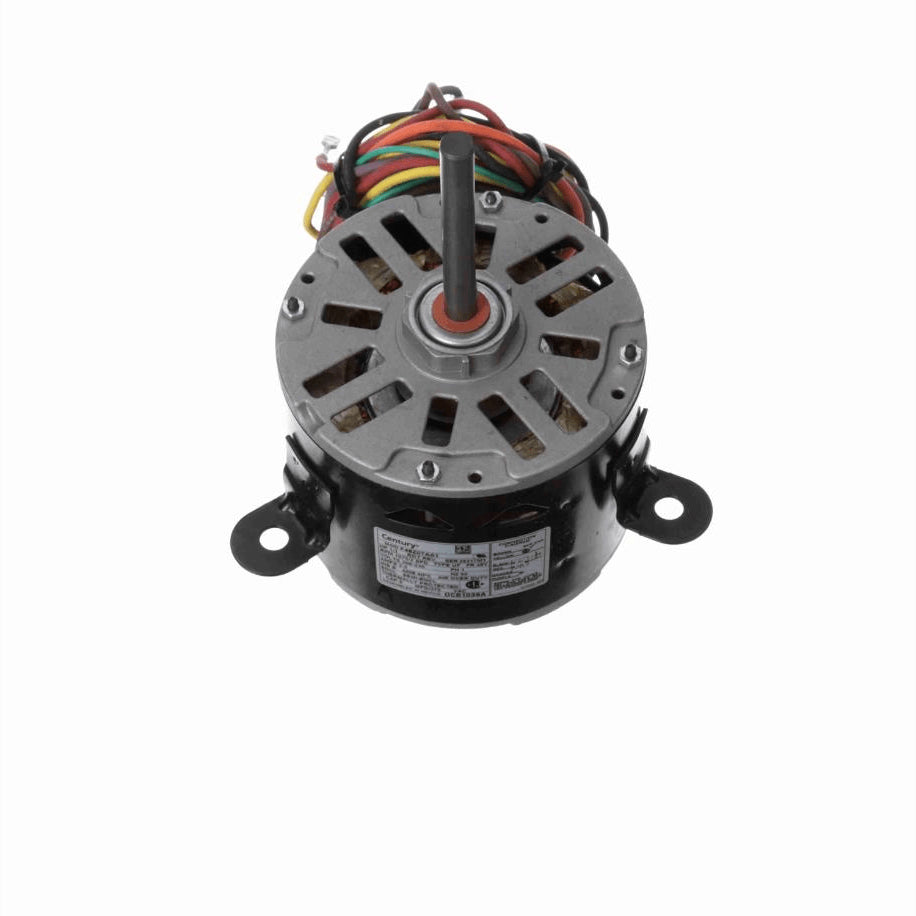

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End and Opposite Shaft End End-Frame, Semi-Enclosed Shell, Air over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 53" Leads with Female Spade Terminals
- Lug Mount
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.5 A
Number of Speeds2
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight13.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingLug
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.75 in
Shaft Diameter0.500 in
Shaft Extension4.2 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
