category:
Electric Motors
country_of_origin:
TW
height:
9
length:
11
manufacturer:
Century
mpn:
160A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
15
width:
8

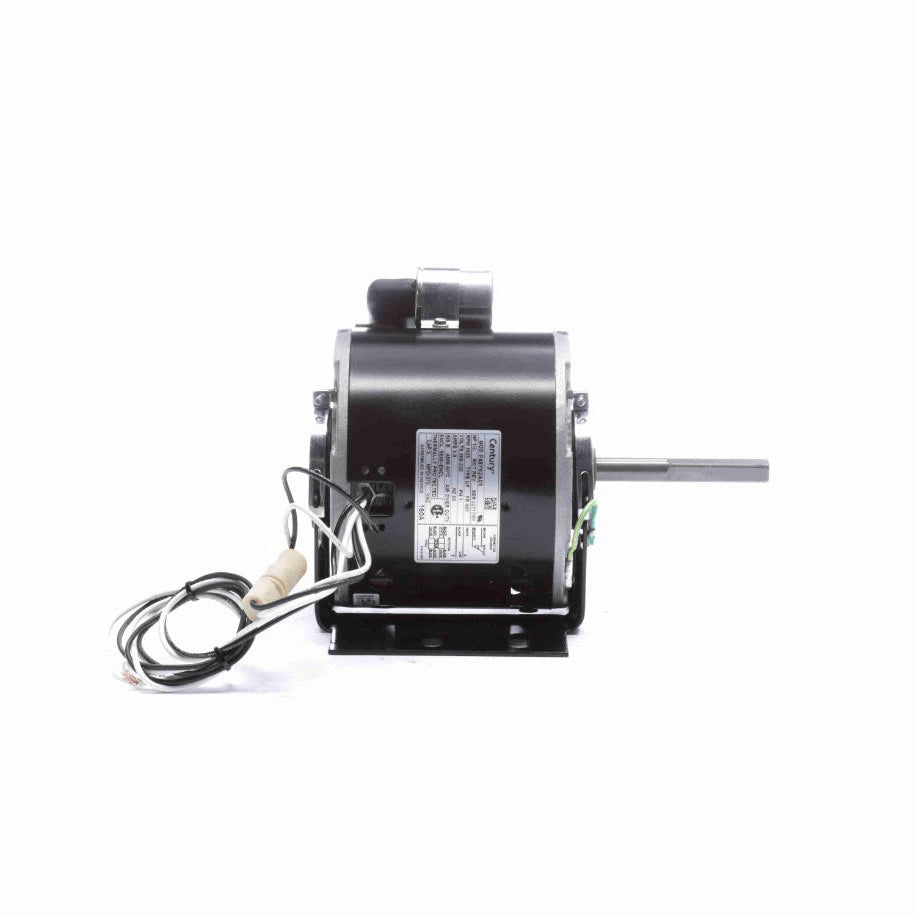

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current3.0 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight15.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
FrameF48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.00 in
Shaft Diameter0.500 in
Shaft Extension4.00 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
