category:
Electric Motors
country_of_origin:
MX
height:
9
length:
23
manufacturer:
Century
mpn:
RAB1034S
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
18
width:
10

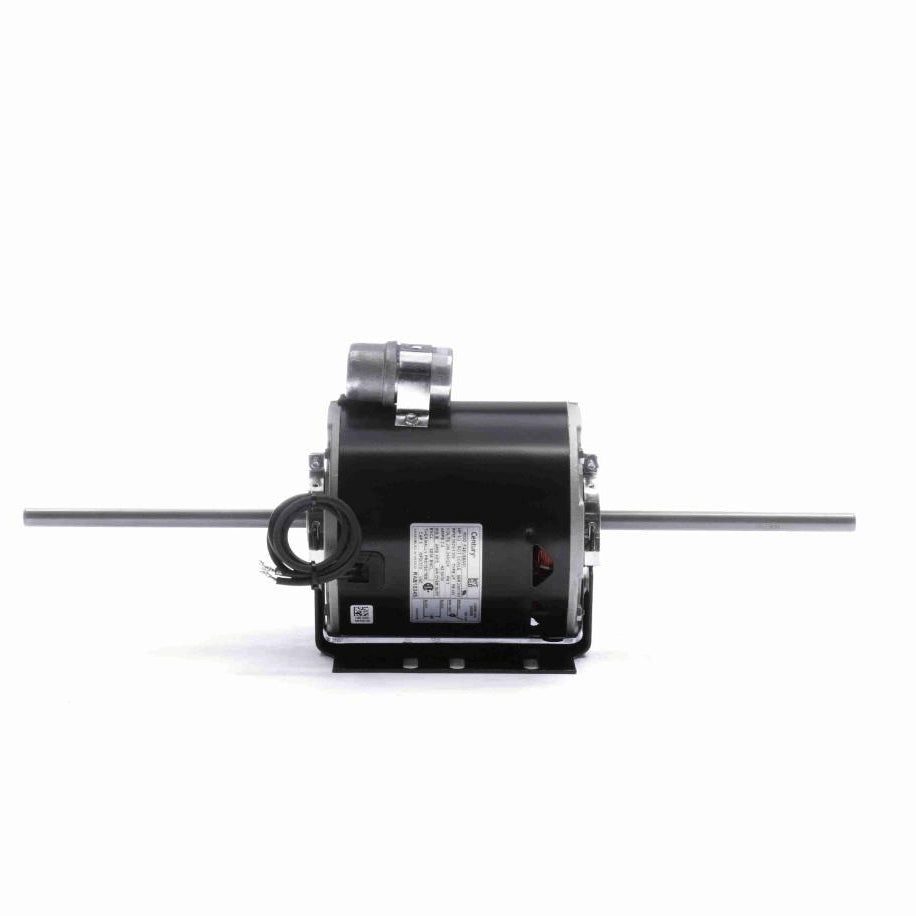

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Enclosed Lead End and Opposite Lead End End-Frame, Semi-Enclosed, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 11" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1625/1350 rpm
Current2.4 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight18.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.38 in
Shaft Diameter0.500 in
Shaft Extension7.1 X.5 X6.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
