category:
Electric Motors
country_of_origin:
TW
height:
9
length:
11
manufacturer:
Century
mpn:
OFR1036
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
17
width:
8

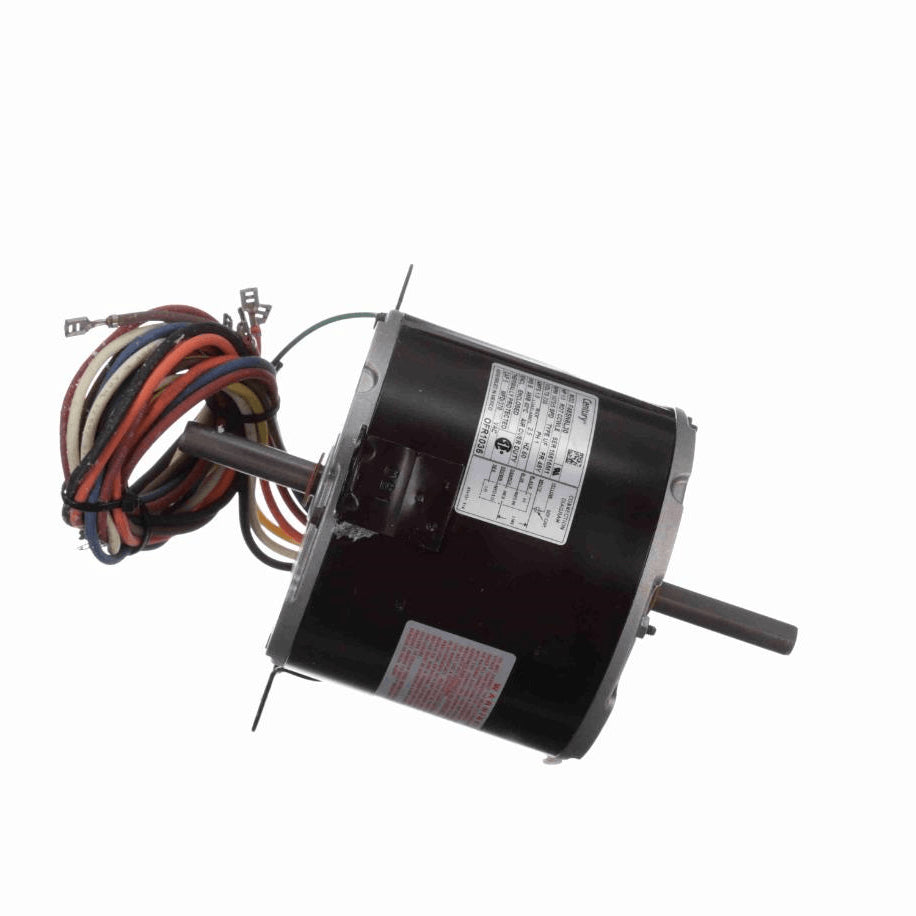

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Double Flats
- 32" Leads with Spade Terminals
- Lug Mount
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.8 A
Number of Speeds5
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight17.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingLug
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.25 in
Shaft Diameter0.500 in
Shaft Extension2.3X.5X2.8 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
