category:
Electric Motors
country_of_origin:
MX
height:
7.37
length:
12.18
manufacturer:
Century
mpn:
OLE1038V1
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
18
width:
7.31

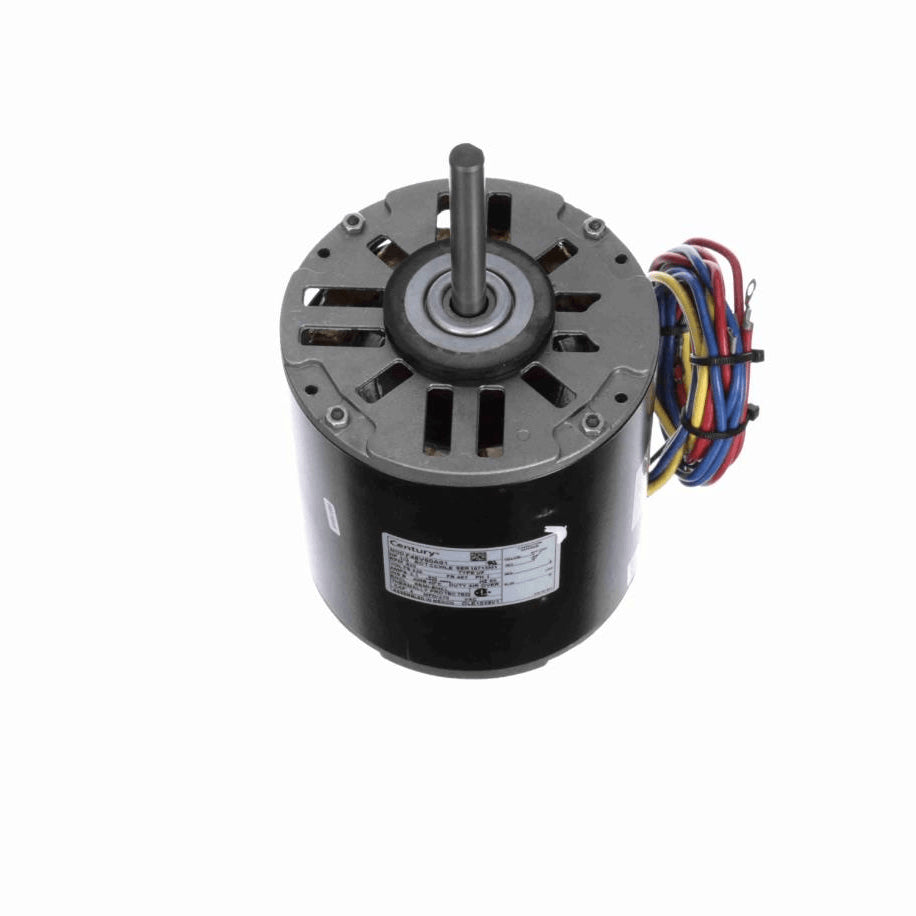

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Semi-Enclosed, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 27" Leads with Female Spade Terminal, 48" Lead with Female Spade Terminal, 48" Lead with #10 Eyelet
- Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed825 rpm
Current2.1 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight18.00 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationCounterclockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.13 in
Shaft Diameter0.500 in
Shaft Extension3.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
