category:
Electric Motors
height:
8.81
length:
22.87
manufacturer:
Century
mpn:
952
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5
width:
8.81

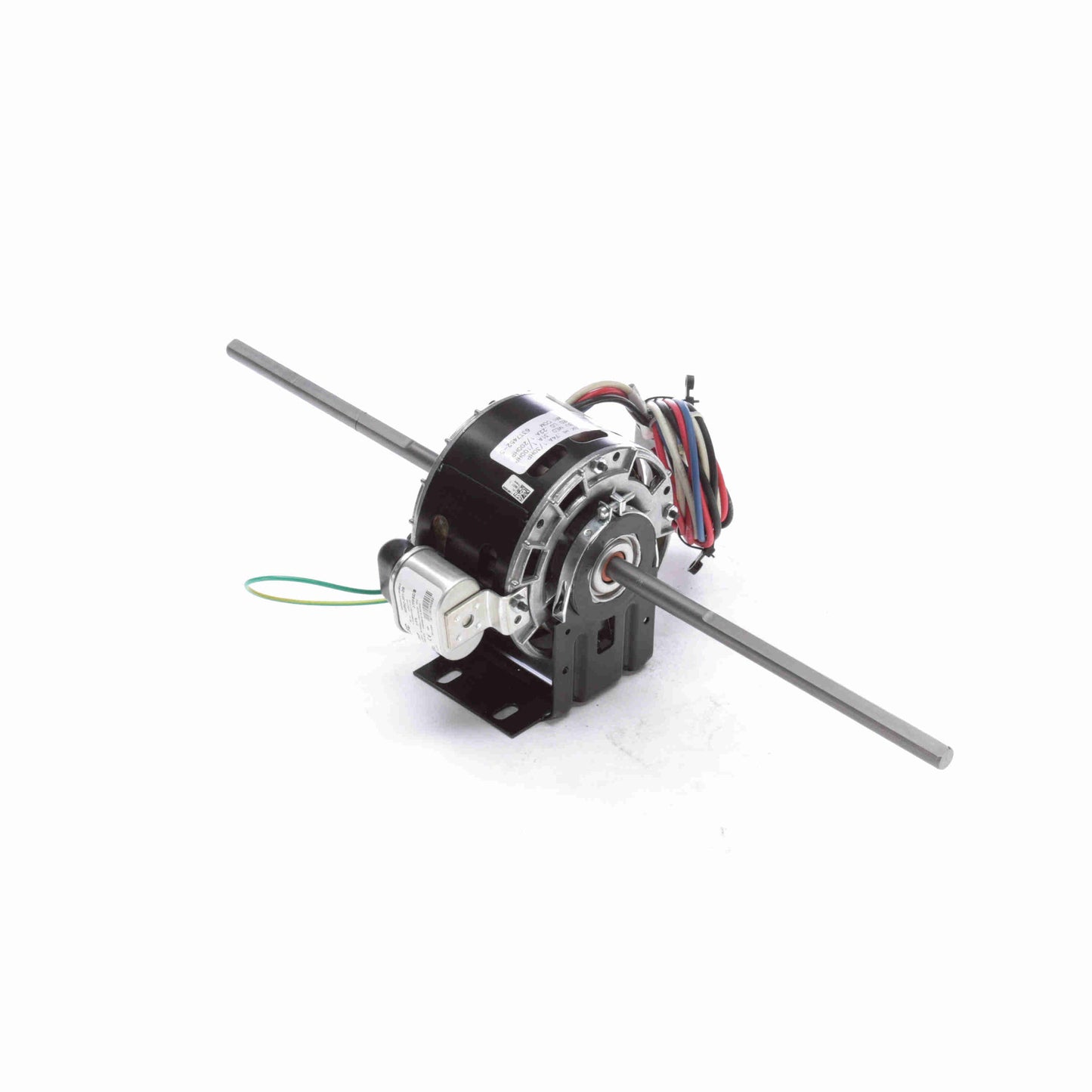

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 40" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1100 rpm
Current.74 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight5.00 LB
Country Of originMexico
Output HP1/30, 1/100, 1/200 Hp
Output KW0.02 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length2.62 in
Shaft Diameter0.500 in
Shaft Extension8.6X.5X9.2 in
HTC8501.10.6020
CEN
Starting MethodAcross The Line
