category:
Electric Motors
country_of_origin:
TW
height:
12.81
length:
12.87
manufacturer:
Century
mpn:
752A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14
width:
12.81

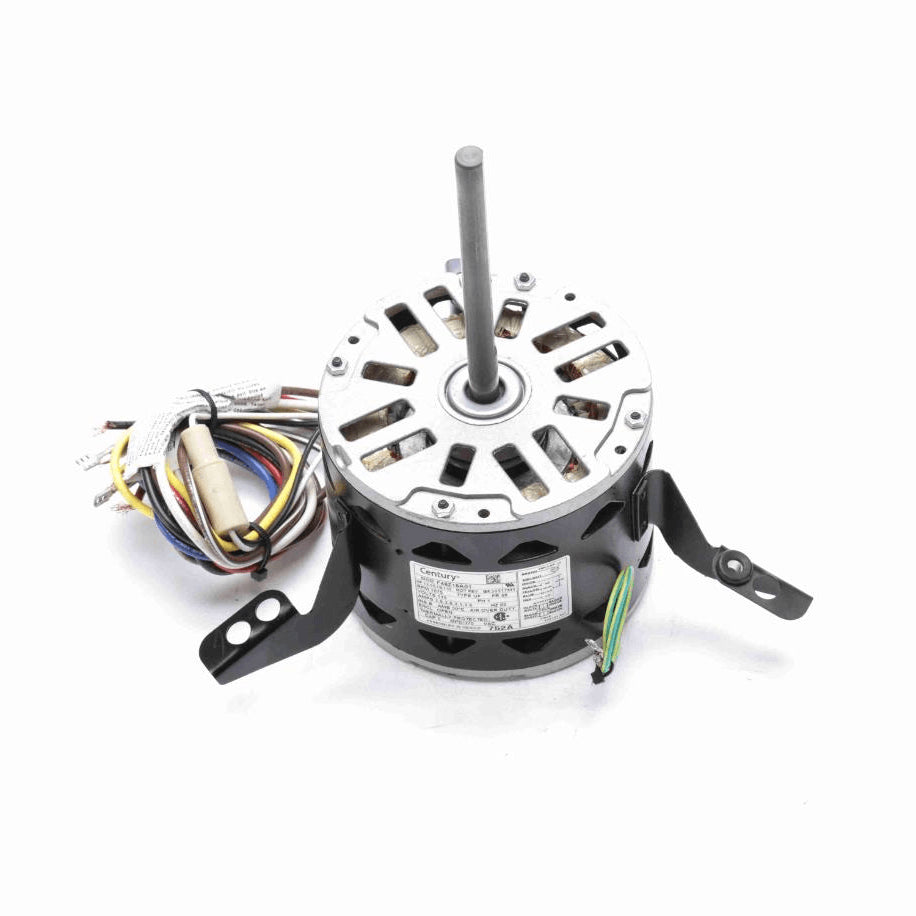

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 50°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 25" Leads
- Flex Mount
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current3.9, 2.8, 2.1, 1.6 A
Number of Speeds4
Ambient Temperature50 °C
ULRecognized
Insulation ClassB
CSAY
Weight14.00 LB
Country Of originMexico
Output HP1/4,1/6,1/8,1/10 Hp
Output KW0.19 kW
Service Factor1
Frame48
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingFlexible Arms
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.75 in
Shaft Diameter0.500 in
Shaft Extension5.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
