category:
Electric Motors
height:
7.81
length:
18.88
manufacturer:
Century
mpn:
466
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11
width:
7.81

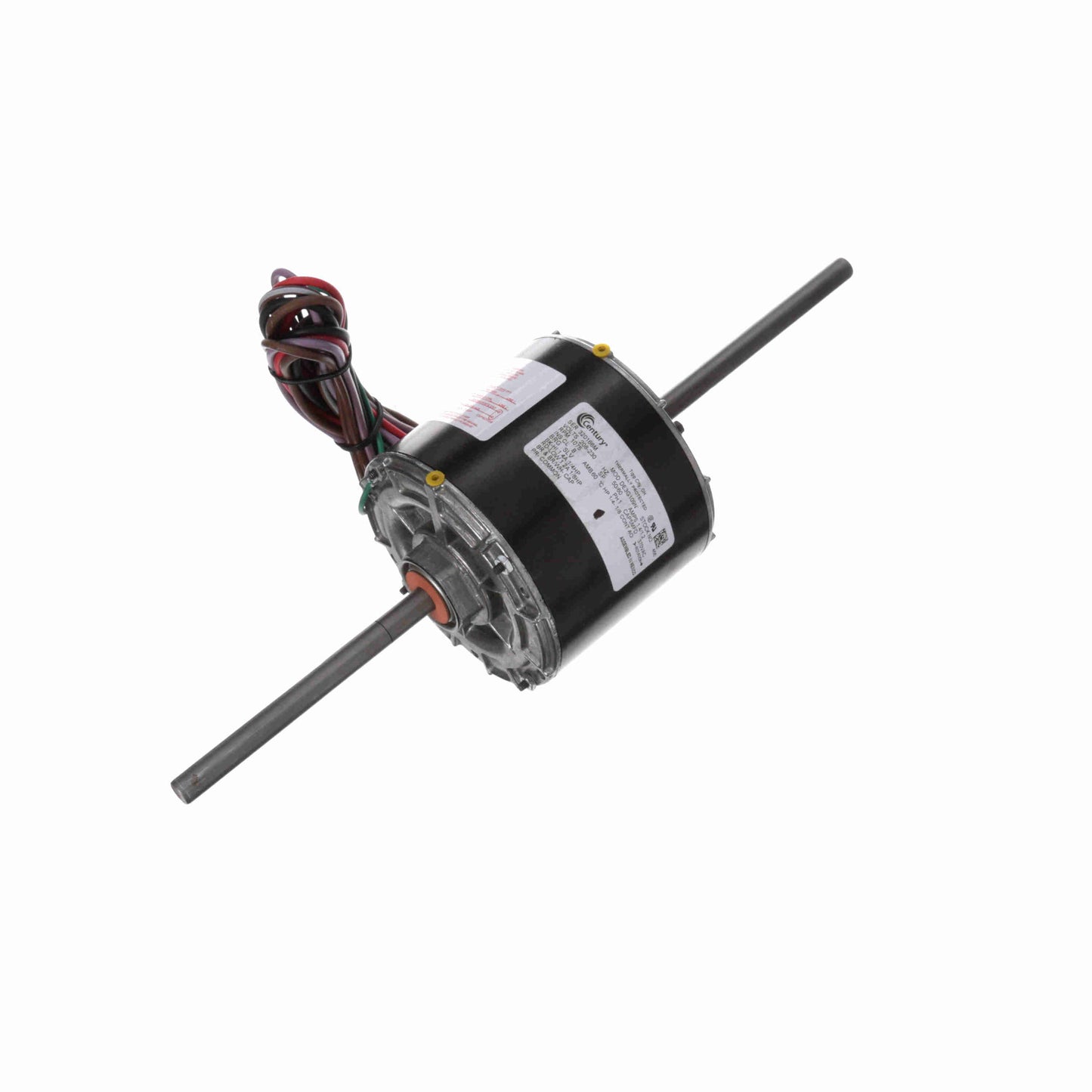

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 36" Leads
- Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.4/1.2 A
Number of Speeds2
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/4, 1/8 Hp
Output KW0.19 kW
Service Factor1
Frame42
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Lead End
MountingRound Belly Band
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.67 in
Shaft Diameter0.500 in
Shaft Extension6 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
