category:
Electric Motors
country_of_origin:
TW
height:
6.5
length:
20.18
manufacturer:
Century
mpn:
747
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
6.81

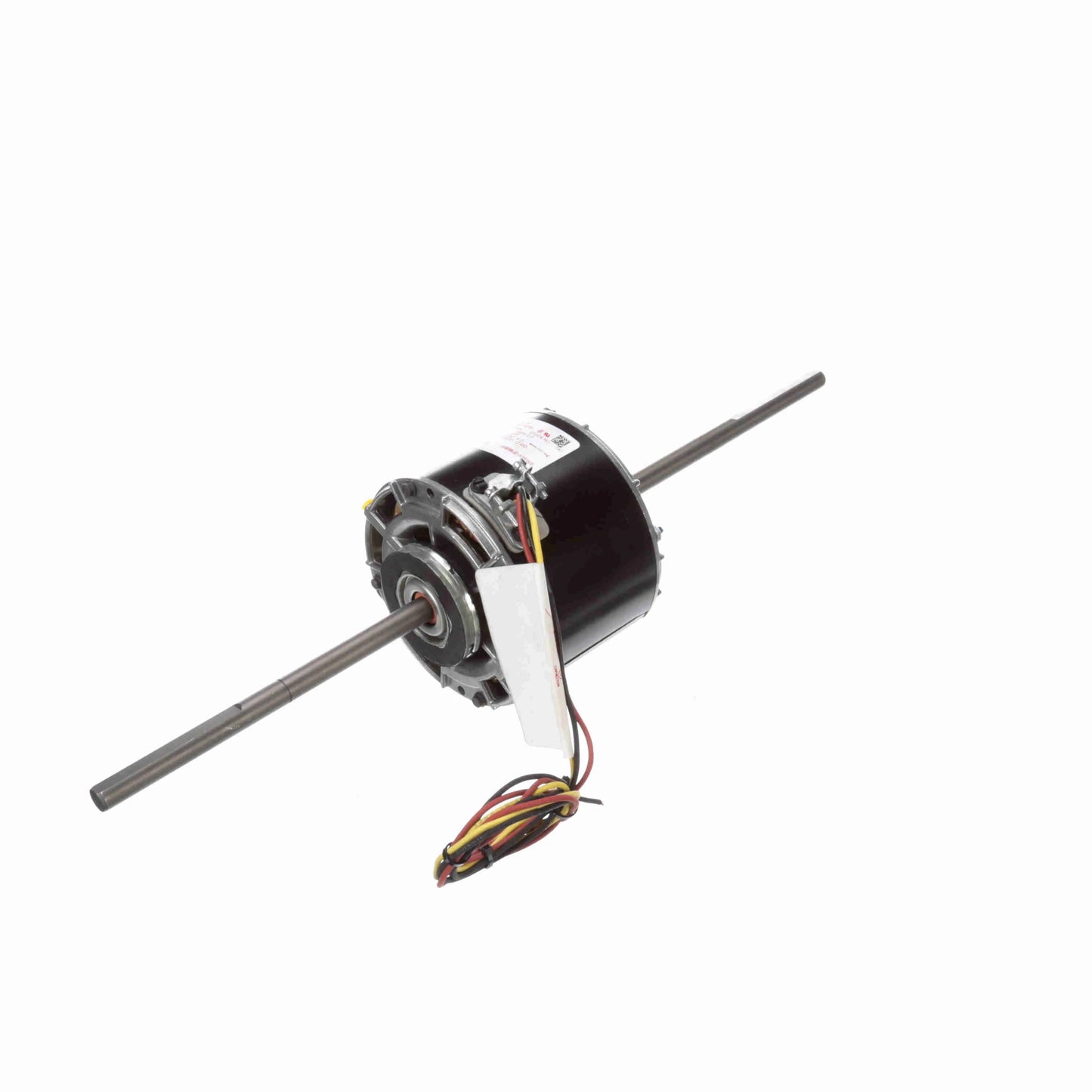

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 33" Leads
- Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current2.0 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/4, 1/8 Hp
Output KW0.19 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.17 in
Shaft Diameter0.500 in
Shaft Extension7.88X.5X7.87 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
