category:
Electric Motors
country_of_origin:
MX
height:
7.37
length:
12.18
manufacturer:
Century
mpn:
OYK1028
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
7.31

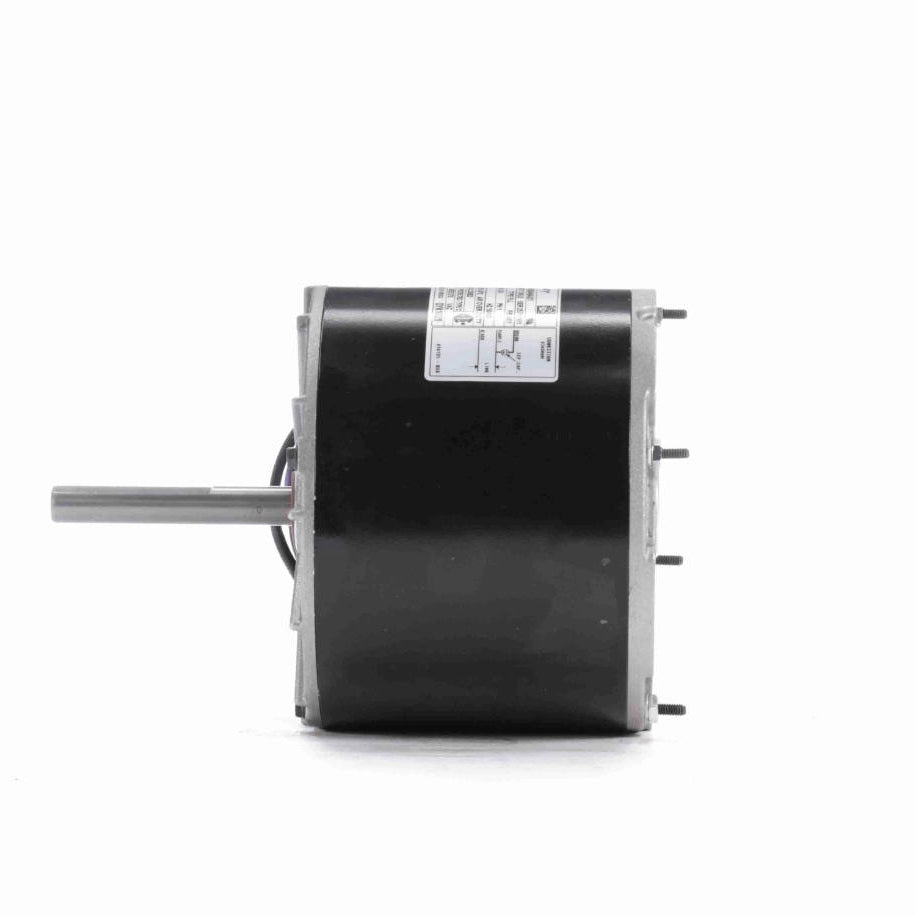

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Flat
- 74" Lead with Female Spade Terminal, 66" Leads with Female Spade Terminals
- Extended Studs Lead End, Vertical Shaft Down
Additional Information
Thermal ProtectionAutomatic
Speed850 rpm
Current1.4 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48Y
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationClockwise Lead End
MountingExtended Studs
Motor OrientationVertical Shaft Down
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.81 in
Shaft Diameter0.500 in
Shaft Extension3.2 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
