category:
Electric Motors
height:
9.81
length:
10.87
manufacturer:
Century
mpn:
942
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
10.81

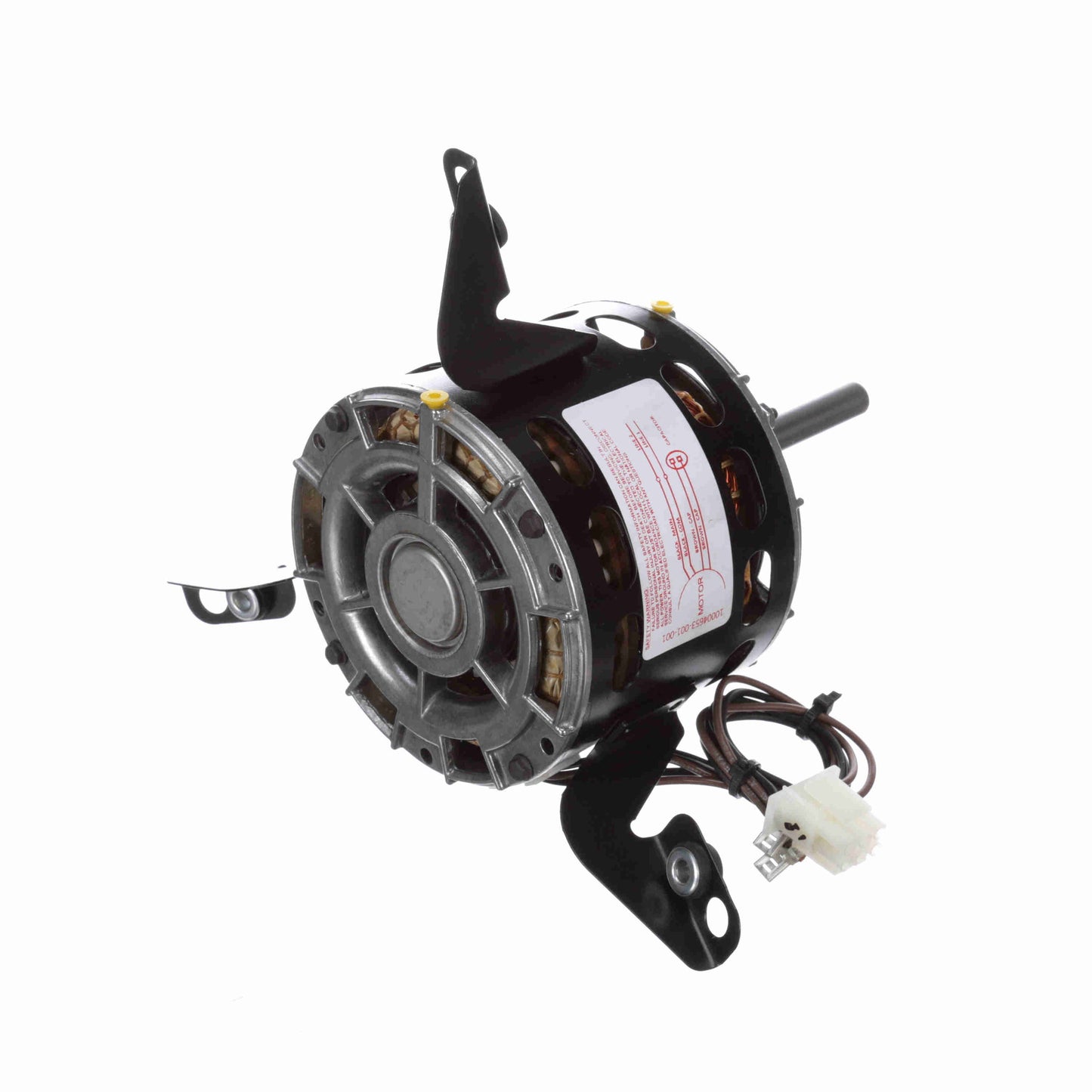

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 15" Leads with Male Terminals Housing
- Flex Mount
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current6.2 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Lead End
MountingLug
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.42 in
Shaft Diameter0.500 in
Shaft Extension3 3/4 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
