category:
Electric Motors
country_of_origin:
TW
height:
9
length:
11
manufacturer:
Century
mpn:
9618A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
20
width:
8

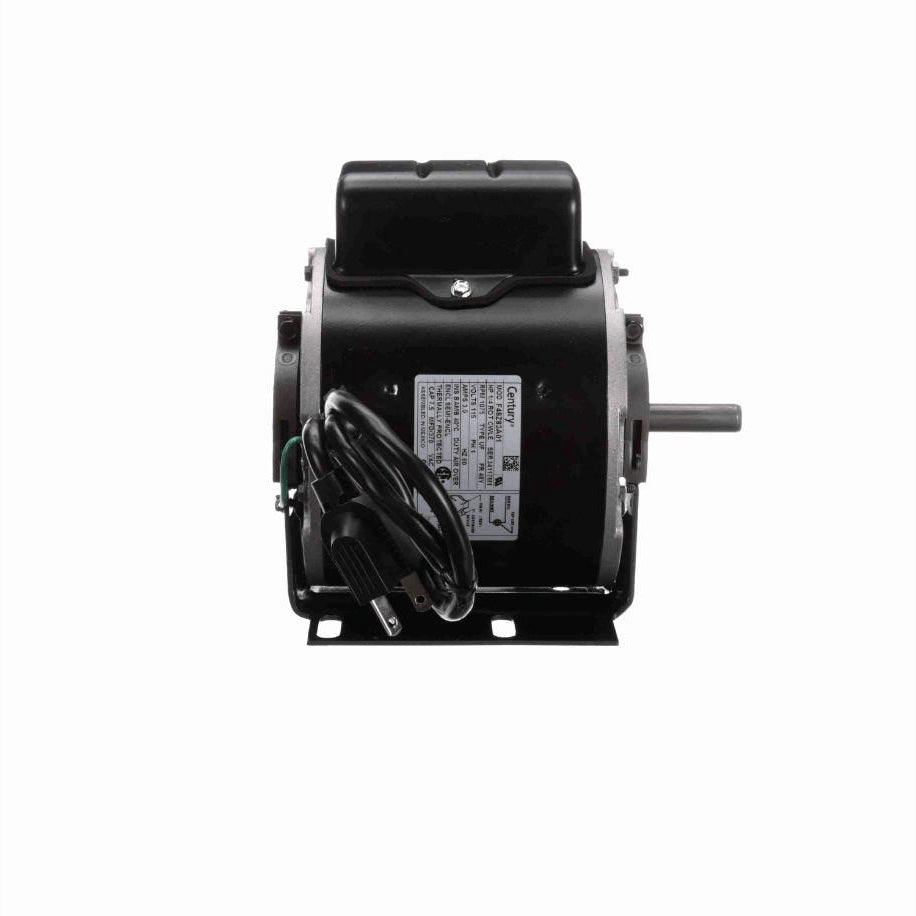

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 23" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current3.0 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight20.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48Y
EnclosureSemi Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Lead End
MountingResilient Base
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.99 in
Shaft Diameter0.500 in
Shaft Extension2.14 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
