category:
Electric Motors
country_of_origin:
TW
height:
6.81
length:
15.87
manufacturer:
Century
mpn:
ORV4538
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
6.81

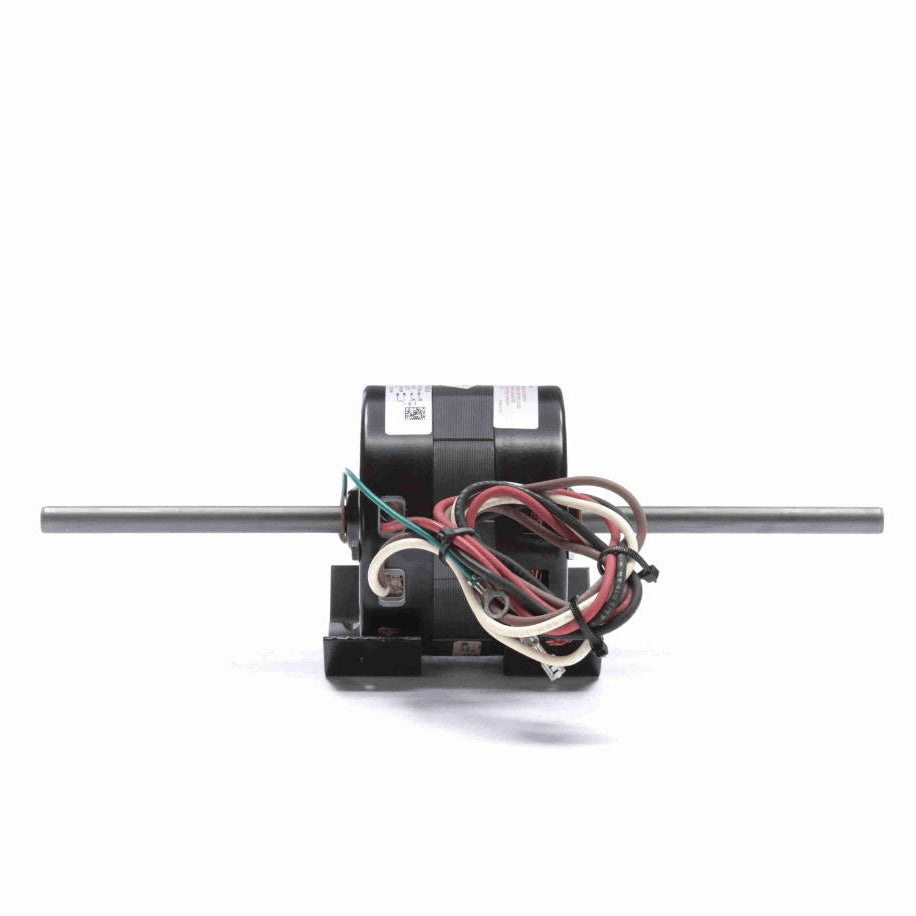

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 23" Leads
- Mounting Bracket Shell Lead End and Opposite Shell Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current3.1 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame42Y
EnclosureOpen Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Lead End
MountingRigid Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension5.7 X.5 X5.7 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
